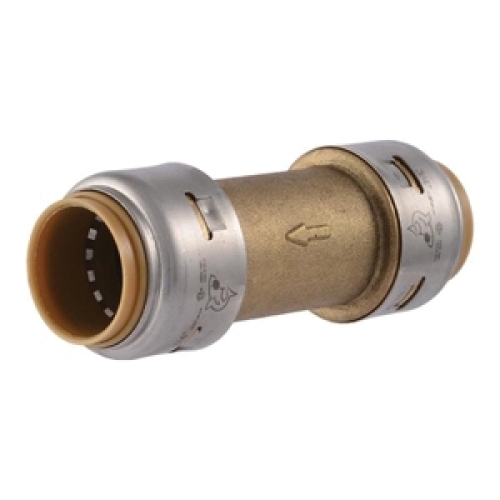

SharkBite® max check valves are spring-loaded and designed to prevent the reverse flow of water. Max check valves can be installed horizontally or vertically. Compatible with PEX, copper, CPVC, PE-RT or HDPE SDR-9 in any combination, max check valves are ideal for working in tight spaces and can be rotated after assembly.
SharkBite® Inline Check Valve, Series: Max™, 3/4 Inch Nominal, Push End Style, 250 psi Pressure, 2 psi Cracking, Media: Water, DZR Brass Body, Mounting Position: Horizontal, Vertical, Stainless Steel Trim, EPDM Softgoods, 40 to 200 deg F, Dimensions: 3.5 Inch L x 1.3 Inch W, Warranty: 25 Year Installed with PEX, Copper, CPVC and PE-RT, 5 Year Installed with HDPE SDR-9
| Series | : | Max™ |
| Nominal Size | : | 3/4 Inch |
| End Style | : | Push |
| Pressure Rating | : | 250 psi |
| Cracking Pressure | : | 2 psi |
| Media | : | Water |
| Body Material | : | DZR Brass |
| Mounting Position | : | Horizontal, Vertical |
| Trim Material | : | Stainless Steel |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | 40 to 200 deg F |
| Dimensions | : | 3.5 Inch L x 1.3 Inch W |
| Warranty | : | 25 Year Installed with PEX, Copper, CPVC and PE-RT, 5 Year Installed with HDPE SDR-9 |
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
- Half the insertion effort, double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
- No tube liner required for PEX
Installation Sheet
