The new KOHLER Rite-Temp valve system sets new standards for ease of installation, application versatility and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from KOHLER's comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.
| Series | : | Rite-Temp® |
| Nominal Size | : | 1/2 Inch |
| Connection Type | : | PEX Crimp x NPT/Sweat |
| Flow Rate | : | 5 gpm |
| Pressure Rating | : | 125 psi |
| Number of Ports | : | 4 |
| Cartridge Type | : | One-Piece Diaphragm |
| Valve Type | : | Pressure Balanced |
| Installation Type | : | Wall |
| Material | : | Brass |

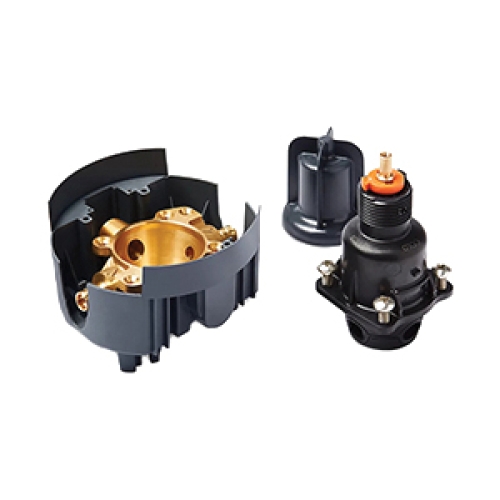

| Includes | : | Valve Body, Pressure Balance Cartridge, Rough-In Guide and Mudguard |
| Warranty | : | Limited Lifetime |
- 1/2 Inch PEX crimp (F1807 style) inlets
- 1/2 Inch universal NPT and direct sweat outlets
- 5 gpm (18.9 lpm) maximum flow rate at 45 psi
- Single lever design cycles from off through cold to hot
- Antiscald protection
- One-piece cartridge design simplifies installation and maintenance
- Adjustable high-temperature limit stop to control maximum water temperature
- Requires valve trim to complete installation (sold separately)
- Pressure-balancing diaphragm technology maintains outlet temperature within +/-3 deg F during water pressure fluctuations
