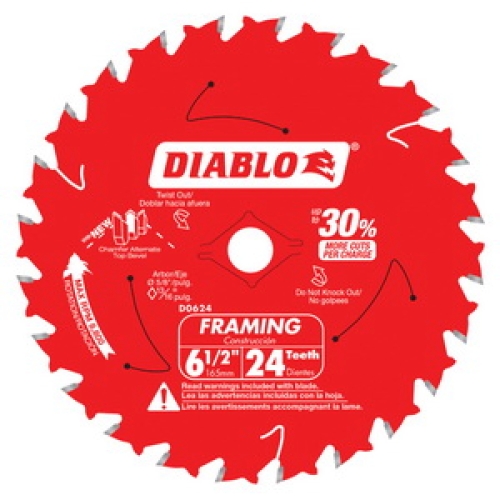

DIABLO® D0624X

DIABLO® D0624X Framing Saw Blade, 6-1/2 Inch Dia, ATB Teeth, 24 -Teeth, 18 deg Hook, 5/8 Inch Arbor

  • Manufacturers: Freud America, Inc
  • Brand Name: DIABLO®
  • CPEPN: D0624X
  • MPN: D0624X
  • UPC: 008925020882
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
  • This item does not qualify for free shipping

Diablo’s innovative framing saw blades for wood feature the first Tracking Point™ tooth design and an enhanced anti-vibration design. Diablo’s Tracking Point™ tooth design delivers maximum life and durability with effortless cutting performance for 5X longer life, 2X more durability and increased stability. This is the only 6-1/2 Inch saw blade in the market to include Tracking Point™ tooth design; making it ideal for framers, roofers, remodelers, concrete formers or anyone wanting ultimate cutting performance in pressure treated wood, 2x lumber, plywood, hardwoods and softwoods.

DIABLO® Framing Saw Blade, 6-1/2 Inch Dia, Carbide Cutting Edge, 0.039 Inch Blade Thickness, ATB Teeth, 24 Teeth, 5/8 Inch Arbor, 0.059 Inch Kerf, 18 deg Hook Angle, 8800 RPM Maximum Speed Rating, Cut Materials: Hardwood, Softwood, 2X Lumber, Pressure Treated, OSB, Laminated Beam, For Use With: General Construction, Framers, Roofers, Remodelers and Concrete Formers

Diameter      :      6-1/2 Inch
Cutting Edge Material      :      Carbide
Blade Thickness      :      0.039 Inch
Teeth Type      :      ATB
Number of Teeth      :      24
Arbor Size      :      5/8 Inch
Kerf      :      0.059 Inch
Hook Angle      :      18 deg
Maximum Speed Rating      :      8800 RPM
Cut Materials      :      Hardwood, Softwood, 2X Lumber, Pressure Treated, OSB, Laminated Beam
Suitable For Use With      :      General Construction, Framers, Roofers, Remodelers and Concrete Formers
  • High-performance TiCo™ hi-density carbide for maximum performance and up to 5X longer cutting life
  • Chamfer Alternate Top Bevel (ATB) tooth geometry for ultimate tracking control
  • Twice the carbide surface area for greater impact resistance and double the durability in nail-embedded wood
  • Superior cutting efficiency in cordless and corded saws by offering up to 30% more cuts per battery charge versus other blades
  • Super-thin laser cut thin kerf design provides ease of feed, accuracy and maximum performance in cordless saws
  • Enhanced anti-vibration design provides the ideal combination of stability and rigidity
  • Perma-SHIELD® non-stick coating protects the blade against heat, gumming and corrosion
