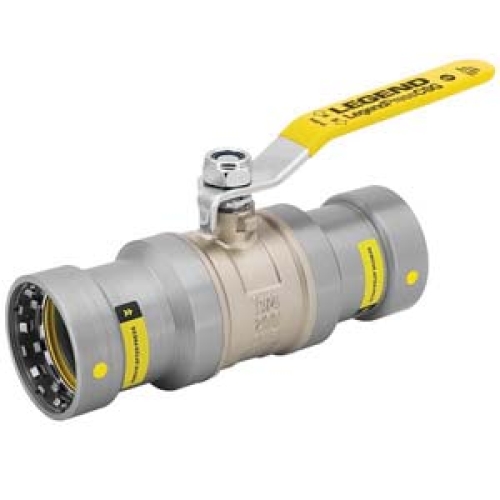

The P-204G is a full port ball valve designed for use with fuel, gas, oil and compressed air. Its carbon steel connectors press into place, streamlining installation without sacrificing safety or reliability. The yellow o-rings are made of HNBR, a material with excellent heat and chemical resilience, low gas permeability and minimal compression set. The P-204G's body and end adapters are plated with zinc-nickel alloy that protects the valve from corrosion to ensure a long service life.
Legend Valve Ball Valve, Series: P-204G Series, 1/2 Inch Nominal, Press x Press End Style, 200 psi Air, 125 psi Gas Pressure, Full Port, Media: Compressed Air, Fuel, Gas and Oil, Carbon Steel Body, 304 Stainless Steel Ball, HNBR O-ring Softgoods, Lever Handle Actuator, -40 to 180 deg F, Dimensions: 4.14 Inch L
| Series | : | P-204G Series |
| Nominal Size | : | 1/2 Inch |
| End Style | : | Press x Press |
| Pressure Rating | : | 200 psi Air, 125 psi Gas |
| Port Type | : | Full |
| Media | : | Compressed Air, Fuel, Gas and Oil |
| Body Material | : | Carbon Steel |
| Ball Material | : | 304 Stainless Steel |
| Softgoods Material | : | HNBR O-ring |
| Actuator Type | : | Lever Handle |
| Temperature Rating | : | -40 to 180 deg F |
| Dimensions | : | 4.14 Inch L |
- Press-to-connect end connections reduce labor costs and increase production
- Approval for fuel gas and compressed air applications
- Designed for installation onto ASTM A53 SCH 10 to SCH 40 carbon steel pipe
- Compatible with Milwaukee® and rigid pressing tools and jaws for carbon steel press
