Gastite® XR3TRM-8-12

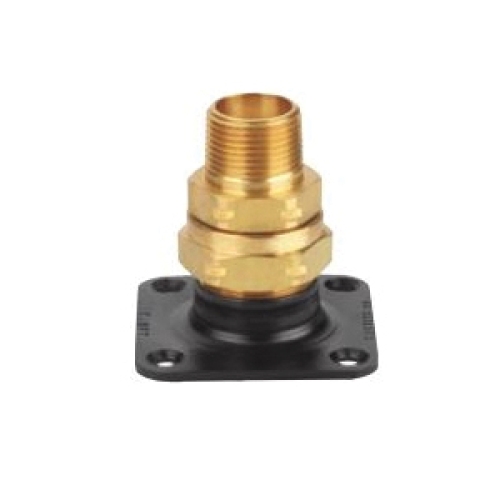

Gastite® XR3TRM-8-12 Termination Fitting with Square Flange, XR3 Series, 1/2 Inch, NPT End, Brass, 25 psi, 2-1/2 Inch L

  • Manufacturers: Gastite
  • Brand Name: Gastite®
  • CPEPN: XR3TRM-8-12
  • MPN: XR3TRM-8-12
  • UPC: 840889021020
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

FlashShield™ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC "fuel gas piping systems using CSST" and listed with CSA, ICC and IAPMO. The FlashShield™ system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing. The Jacket-Lock™ and Metal locking features provide steel tubing protection and continuous conductivity.

Gastite® Termination Fitting with Square Flange, Series: XR3 Series, 1/2 Inch Nominal, NPT End Style, 25 psi Working, Brass, -40 to 160 deg F, Dimensions: 2-1/2 Inch L

Series      :      XR3 Series
Nominal Size      :      1/2 Inch
End Style      :      NPT
Working Pressure      :      25 psi
Material      :      Brass
Temperature Rating      :      -40 to 160 deg F
Dimensions      :      2-1/2 Inch L
  • Approved for concealed use
  • Tool-less flare fitting design
  • Metal-to-metal seal
  • Multi-point seal
  • Self-guiding fitting assembly
  • Jacket Lock™ feature
  • Metal locking feature
  • Fully reusable fitting
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Gastite_XR3TRM-8-12_Specification Sheet.pdf
