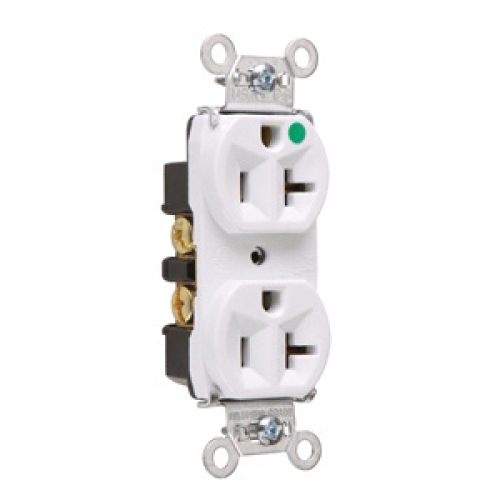

Pass & Seymour® 8300HW

Compact bodies leave more room for wires in the box, but that isn't the only way these durable receptacles speed installation. They also feature an auto-ground and screw-pressure-plate back wiring (with the option of side wiring). Long service life is ensured by one-piece, triple-wipe brass power contacts and a heavy-gauge strap that is locked into the high strength thermoplastic back body.

Pass & Seymour® Compact Duplex Receptacle, Heavy-Duty, Hospital-Grade, Tamper-Resistant, Commercial, 2 Pole, 3 Wires, 14 - 10 AWG Wire, 20 A, 125 V, Back and Side Wired Connection, Screw Terminal, Positive Grounding Style, Dimensions: 3.281 Inch H x 1.322 Inch W x 0.78 Inch D, Nylon, Matte White, NEMA 5-20R NEMA Rating, Warranty: 1 Year Limited

• 0.032 Inch thick, brass, triple-wipe power contacts for lasting retention
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
• Two drive screws anchor strap to back body and face where abrupt removal torque is strongest
• Zinc-plated steel strap for added strength and ground conductivity
• Auto-ground eliminates the necessity to terminate grounding conductor to device
• Strap tabs wrap around face to prevent strap from separating from face and back body
• Tri-drive steel terminal screws, internal screw pressure-plate back and side wire capability
• Two back wire holes for more wiring flexibility

• Cut Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_&_Seymour_8300HW_Cut Sheet.pdf
