Hammond® CSG12124
Send Print
  1. pin-int

Hammond® CSG12124

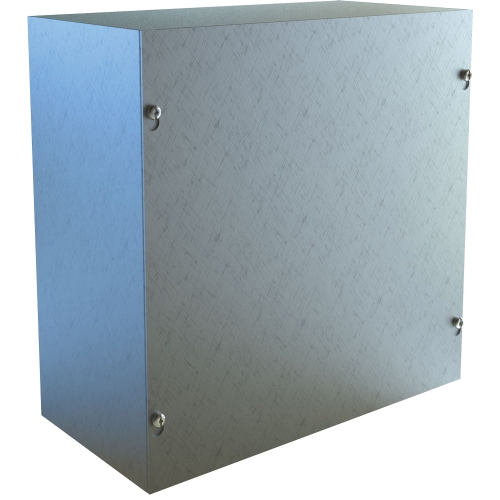

Hammond® CSG Series Junction Box, 12 Inch L, 12 Inch W, 4 Inch D, NEMA 1, Wall Mount, Steel, Galvanized

  • Manufacturers: Hammond Manufacturing
  • Brand Name: Hammond®
  • CPEPN: CSG12124
  • MPN: CSG12124
  • UPC: 623980266145
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

Hammond® Junction Box, Series: CSG Series, 12 Inch Length, 12 Inch Width, 4 Inch Depth, Rectangular Shape, NEMA 1 Enclosure, Wall Mounting, Steel, Galvanized

Series      :      CSG Series
Length      :      12 Inch
Width      :      12 Inch
Depth      :      4 Inch
Shape      :      Rectangular
Enclosure Type      :      NEMA 1
Mounting Type      :      Wall
Material      :      Steel
Finish      :      Galvanized
  • Formed and spot welded from 16 ga (up to 30 x 24 Inch), 14 ga (36 x 24 Inch) or 12 ga (36 x 36 Inch) G90 steel
      • Flat steel covers fastened with plated steel screws
        Keyhole slots permit cover to be lifted off without removing screws entirely
          Through holes in back for wall mounting
            Grounding location embossed in body
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Hammond_CSG12124_Specification_Sheet.pdf
