The CM family of ceiling mount occupancy sensors provide a range sensor solutions for applications with finished ceilings (e.g. ceiling tiles, sheetrock, plaster). CM family sensors utilize 100% digital Passive Infrared (PIR) detection and are available with several lens options, providing flexibility for multiple mounting height and coverage pattern requirements. Dual technology (PDT) occupancy detection can also be added as an option for applications where occupants are stationary for long periods of time. With optional flash programming via the Sensor Switch Mobile App, the user can easily change time delay, on mode and photocontrol settings.

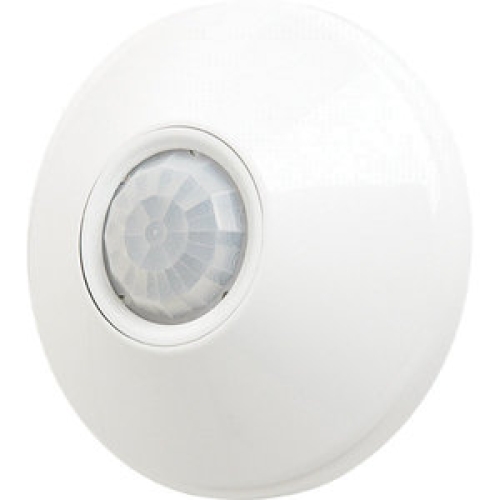

Lithonia Lighting® SensorSwitch™ Occupancy Sensor, Small Motion, Series: CM Series, 0-10 VDC, PIR Occupancy Sensor, 360 deg Sensing, Ceiling Mounting, 14 to 176 deg F, White, Matte, Dimensions: 4.55 Inch W x 1.55 Inch D, Warranty: 5 Year Limited
| Type | : | Small Motion |
| Series | : | CM Series |
| Voltage Rating | : | 0-10 VDC |
| Sensor Type | : | PIR Occupancy |
| Sensing Angle | : | 360 deg |
| Mounting Type | : | Ceiling |
| Temperature Rating | : | 14 to 176 deg F |
| Color | : | White |
| Finish | : | Matte |
| Dimensions | : | 4.55 Inch W x 1.55 Inch D |
| Warranty | : | 5 Year Limited |
- Configurable using the Sensor Switch Mobile App
- 360 deg coverage
- Push-button programmable, adjustable time delays, and multiple operating modes
- 100 hr lamp burn-in timer
- No field calibration or sensitivity adjustments required
- Convenient test mode
- Green LED indicator
Installation Sheet
