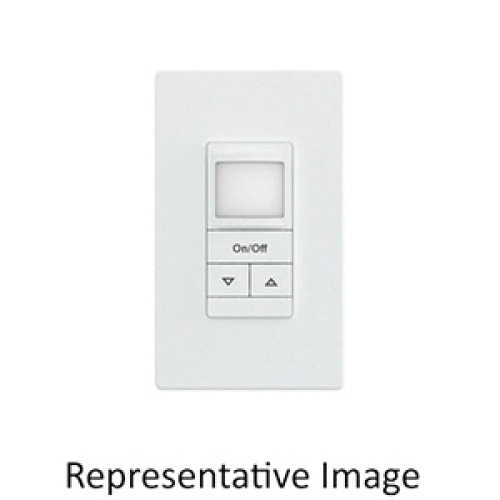

Lithonia Lighting® WSXA AL

The SensorSwitch™ WSXA Series offers all the benefits of the WSX Series along with improved functionality and new aesthetics. The cost-effective multi-way (MWO) solution allows you to control fixtures from up to nine different locations in a room. The WSXA Series is ideal for commercial indoor spaces with multiple entryways that require small motion detection up to 20 ft such as conference rooms, long hallways, restrooms and breakrooms. Compatible with the new SSW Series of sealed screwless wall plates, designed to protect the device from liquid intrusion.

Lithonia Lighting® SensorSwitch™ Wall Switch Sensor With Occupancy Detection and Daylighting, Series: WSXA Series, 120 - 277 VAC, Single Gang Box Mounting, 32 to 140 deg F, Light Almond, Dimensions: 2.74 Inch H x 1.68 Inch W x 1.63 Inch D, Warranty: 5 Year Limited

• Connect up to nine devices with neutral wiring or up to two devices without neutral wiring on a single traveler
• Wall switches can be spaced up to 250 ft apart
• Compatible with 0 to 10 V dimming luminaries
• Small motion detection up to 20 ft (6.1 m)
• Programmable with SensorSwitch VLP mobile app or traditional push button
• Passive dual technology (PDT)
• Mis-wire protection - interchangeable line and load wires prevent damage to device if line voltage is mis-wired to 0 to 10 V wires
• Integrated photocell with adaptive daylight harvesting (ADH)
• Convertible neutral to ground - accommodates powering over ground or neutral connection in one device
• Functions with or without neutral connection
• Self-grounding mounting strap
• Meets NEC 2017 Section 404.2C neutral requirements (no current leakage to ground when connected to neutral)

• Catalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WSXA_WH_Catalog.pdf
