Zurn® 112-625XL3
Send Print
  1. pin-int

Zurn® 112-625XL3

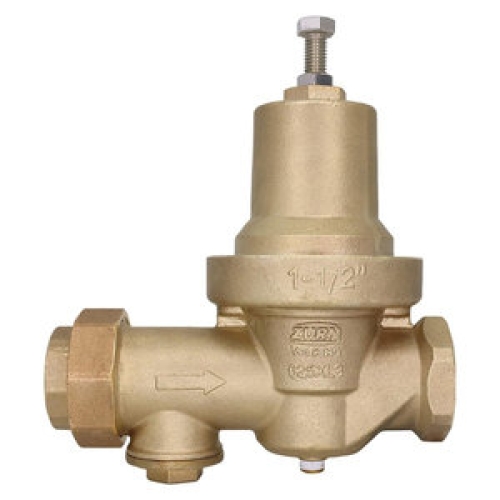

Zurn® Wilkins® 112-625XL3 Pressure Reducing Valve with Strainer, 1-1/2 Inch, FNPT x FNPT End, 400 psi, Bronze Body Contact us for better pricing than what is shown

  • Manufacturers: Zurn Elkay Water Solutions
  • Brand Name: Zurn®
  • CPEPN: 112-625XL3
  • MPN: 112-625XL3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

    • This product ships for free standard ground only.
    Other options will be charged.

The 625XL3 pressure reducing valve with integral strainer works effectively for residential and light commercial water lines providing high-flow rate capacity and low-pressure fall off. The patented venturi technology enables the valve to have best in-class flow performance. The all-bronze body, stainless steel stem and cartridge internals provide superior corrosion resistance and increases product life offering the ultimate value to the owner.

Zurn® Pressure Reducing Valve with Strainer, 1-1/2 Inch Nominal, FNPT x FNPT End Style, 400 psi Pressure, 140 deg F, Media: Water, 8-1/4 Inch Inlet to Outlet Length, 7-1/2 Inch Top to Inlet Center, Bronze Body, Buna N/EPDM Softgoods

California residents see Prop 65 WARNINGS

Nominal Size      :      1-1/2 Inch
End Style      :      FNPT x FNPT
Pressure Range      :      400 psi
Temperature Rating      :      140 deg F
Media      :      Water
Inlet to Outlet Length      :      8-1/4 Inch
Top to Inlet Center      :      7-1/2 Inch
Body Material      :      Bronze
Softgoods Material      :      Buna N/EPDM
  • Reduces pressure loss over entire flow range, making specification and sizing easier and improving the user experience
  • Standard stainless internals and sealed cage provide superior durability
  • Works effectively for new and retrofit installations
  • Cartridge internals enhance repairability
  • Enhanced sealing of strainer access port reduces potential for leaks
  • pdfInstallation Instruction https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_1_625XL3_Installation_Instruction.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_1_625XL3_Specification_Sheet.pdf
