Zurn® 12-35XL

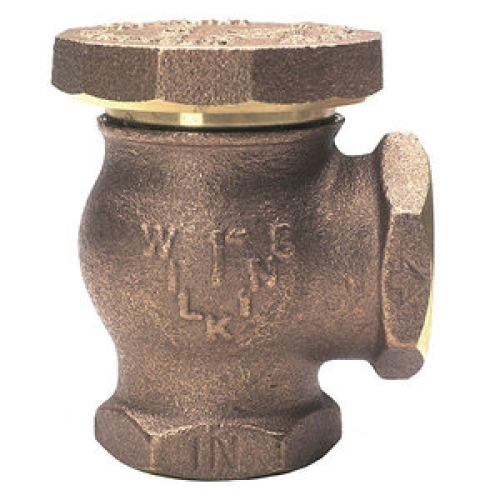

Zurn® Wilkins® 12-35XL Atmospheric Vacuum Breaker, 1/2 Inch, FNPT x FNPT End, 14.5 gpm, 125 psi, Brass Body Contact us for better pricing than what is shown
- Manufacturers: Zurn Elkay Water Solutions
- Brand Name: Zurn®
- CPEPN: 12-35XL
- MPN: 12-35XL
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
The 35XL atmospheric vacuum breaker is utilized in high hazard, non-continuous pressure applications for protection against back siphonage of contaminated water into the potable water supply. The main valve body is made from cast bronze with a lightweight plastic float and is ideal for use in both irrigation and laboratory applications. The 35XL prevents back siphonage in an economical way and features a maximum working water pressure of 125 psi and a maximum water temperature of 180 deg F. Choose from options like a rough chrome plate finish, polished chrome finish and vertical inlet and outlet with a rough chrome finish.
Zurn® Atmospheric Vacuum Breaker, 1/2 Inch Nominal, FNPT x FNPT End Style, 125 psi Pressure, 14.5 gpm Flow Rate, Media: Water, Brass Body, Buna N Softgoods, 180 deg F, Dimensions: 1-5/16 Inch L, Rough Brass, Includes: Atmospheric Vent
| Nominal Size | : | 1/2 Inch |
| End Style | : | FNPT x FNPT |
| Pressure Rating | : | 125 psi |
| Flow Rate | : | 14.5 gpm |
| Media | : | Water |
| Body Material | : | Brass |
| Softgoods Material | : | Buna N |
| Temperature Rating | : | 180 deg F |
| Dimensions | : | 1-5/16 Inch L |
| Finish | : | Rough Brass |
| Includes | : | Atmospheric Vent |
- 3/4 - 2 Inch sizes provide quick and easy installation
- Back siphonage is prevented in an economically sound way
- Ideal for irrigation and laboratory applications
- Low-lead law compliant
