Zurn® 12-760
Send Print
  1. pin-int

Zurn® 12-760

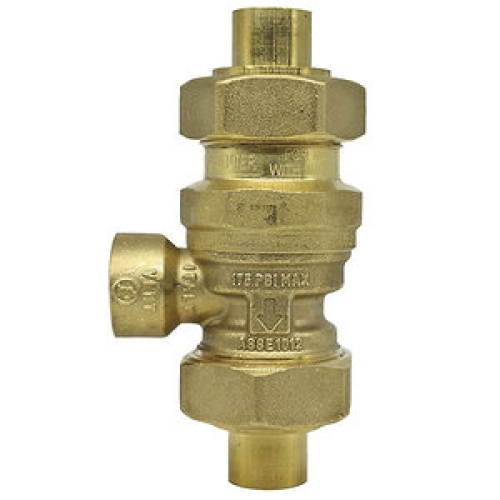

Zurn® Wilkins® 12-760 Dual Check Valve Backflow Preventer, 1/2 Inch, FNPT End, 175 psi, Brass Body Contact us for better pricing than what is shown

  • Manufacturers: Zurn Elkay Water Solutions
  • Brand Name: Zurn®
  • CPEPN: 12-760
  • MPN: 12-760
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

    • This product ships for free standard ground only.
    Other options will be charged.

The 760 dual check valve backflow preventer with intermediate atmospheric vent provides low health hazard protection from backflow in both residential and commercial applications, primarily from a residential boiler or small commercial boiler. Features of this continuous pressure type backflow preventer include a threaded atmospheric vent drain for safe drainage and a corrosion-resistant, high-quality brass body construction with an integral stainless steel strainer screen to prevent buildup of unwanted debris. Union connections are included on both ends and are available in either FNPT or copper connections.

Zurn® Dual Check Valve Backflow Preventer, 1/2 Inch Nominal, FNPT End Style, 175 psi Pressure, 1-11/16 Inch Cap to Inlet Center, 1-7/8 Inch Hex, Media: Water, Brass Body, Buna N Softgoods, 33 to 210 deg F, Dimensions: 4-1/8 Inch L, Includes: Intermediate Atmospheric Vent, Warranty: 1 Year Limited

California residents see Prop 65 WARNINGS

Nominal Size      :      1/2 Inch
End Style      :      FNPT
Pressure Rating      :      175 psi
Cap to Inlet Center      :      1-11/16 Inch
Hex Size      :      1-7/8 Inch
Media      :      Water
Body Material      :      Brass
Softgoods Material      :      Buna N
Temperature Rating      :      33 to 210 deg F
Dimensions      :      4-1/8 Inch L
Includes      :      Intermediate Atmospheric Vent
Warranty      :      1 Year Limited
  • Brass body and stainless steel strainer screen protect against corrosion
  • Integral strainer screen ensures long-lasting prevention of debris build up
  • Threaded atmospheric vent drain allows for safe drainage
  • pdfInstallation Instruction https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_34_760_Installation_Instruction.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_34_760_Specification_Sheet.pdf
