Zurn® 38-ZW3870XLTF
Send Print
  1. pin-int

Zurn® 38-ZW3870XLTF

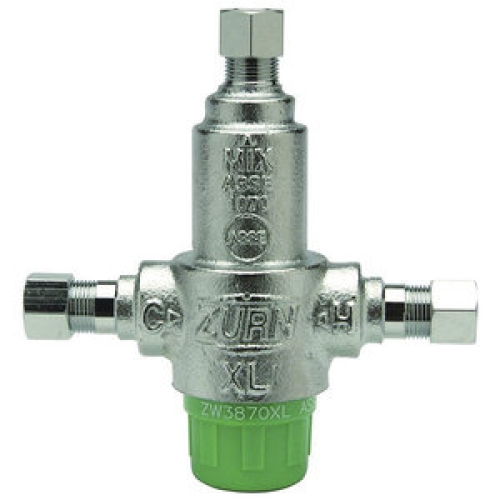

Zurn® Wilkins® Aqua-Gard® 38-ZW3870XLTF Thermostatic Mixing Valve, 3/8 Inch, 145 psi, Bronze Body, Chrome-Plated Contact us for better pricing than what is shown

  • Manufacturers: Zurn Elkay Water Solutions
  • Brand Name: Zurn®
  • CPEPN: 38-ZW3870XLTF
  • MPN: 38-ZW3870XLTF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

    • This product ships for free standard ground only.
    Other options will be charged.

The Aqua-Gard® ZW3870XLT thermostatic mixing valve is designed to be installed with 3/8 Inch point of use applications (residential and light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature. The ZW3870XLT is also available in a thermal flush option to allow maintenance personnel, using a special tool, to temporarily override the anti-scald function of the valve and flush the downstream system with high-temperature water for disinfection purposes.

Zurn® Thermostatic Mixing Valve, 3/8 Inch Nominal, 145 psi Pressure, 95 to 115 deg F, 3.1 gpm Flow, Media: Water, 4-3/16 Inch Inlet to Outlet Length, 2-27/32 Inch Top to Inlet Center, Bronze Body, FKM Softgoods, Chrome-Plated, Dimensions: 4-27/32 Inch H

California residents see Prop 65 WARNINGS

Nominal Size      :      3/8 Inch
Pressure Rating      :      145 psi
Temperature Rating      :      95 to 115 deg F
Flow Capacity      :      3.1 gpm
Media      :      Water
Inlet to Outlet Length      :      4-3/16 Inch
Top to Inlet Center      :      2-27/32 Inch
Body Material      :      Bronze
Softgoods Material      :      FKM
Finish      :      Chrome-Plated
Dimensions      :      4-27/32 Inch H
  • Options for 3 or 4 ports for installation versatility
  • Includes inlet checks and strainers for reduced maintenance and installation costs
  • High protection from scalding injuries with precise temperature control
  • Compression fittings designed for long-lasting effectiveness
  • Designed for single fixture use and is most suitable for sensor faucets
  • Lead-free
  • pdfBrochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_38_ZW3870XLTF_Brochure.pdf
  • pdfInstallation Instruction https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_38_ZW3870XLTF_Installation_Instruction.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zurn_38_ZW3870XLTF_Specification_Sheet.pdf
