SPEARS® schedule 40 PVC fitting designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure the very best PVC fittings available.

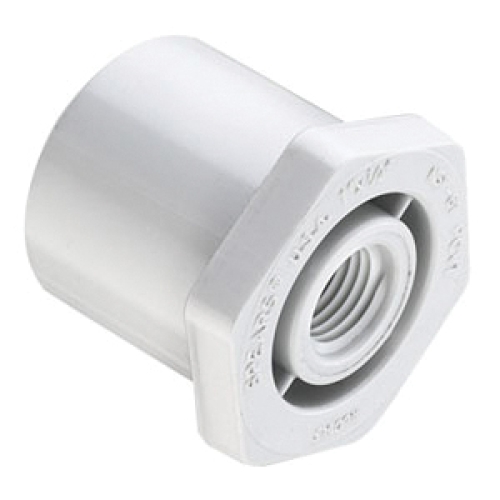

Spears® Reducing Pipe Bushing, Flush, Solvent Weld, 438 Series, 2 x 1 Inch Nominal, Spigot x FIPT End Style, 1-7/8 Inch Length, SCH 40, PVC, White, Industry Standards: ASTM D1784/D2466, 140 deg F, Warranty: Limited Lifetime
| Type | : | Flush, Solvent Weld |
| Series | : | 438 Series |
| Nominal Size | : | 2 x 1 Inch |
| End Style | : | Spigot x FIPT |
| Length | : | 1-7/8 Inch |
| Schedule Rating | : | SCH 40 |
| Material | : | PVC |
| Color | : | White |
| Industry Standards | : | ASTM D1784/D2466 |
| Temperature Rating | : | 140 deg F |
| Warranty | : | Limited Lifetime |
- Exceptional chemical and corrosion resistance
- High temperature ratings
- Lower installation costs
- Higher flow capacity
- Additional fabricated configurations through 36 Inch
- Advanced design specialty fittings
