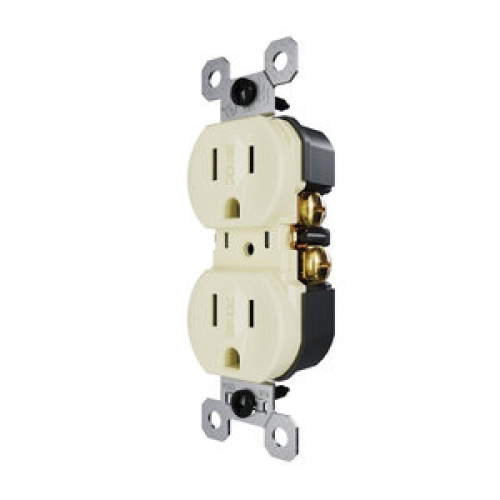

Pass & Seymour® 3232TREXWRI

Save time and reduce the risk of improper wiring with the 15 A tamper-resistant external pressure plated duplex receptacle. The external pressure plate expedites installation, requiring no need to loop the wire. It also provides additional space to easily fit larger wire gauge sizes, up to 10 AWG wires. Also including tamper and weather-resistance, this model was designed for use in outdoor spaces.

Pass & Seymour® Trademaster® Duplex Receptacle, Weather-Resistant, Tamper-Resistant, Residential Commercial/Residential, 3 Wires, 14 - 10 AWG Wire, 15 A, 125 V, NEAM 5-15R, Back and Side Wired Connection, Weatherproof Enclosure, Screw Terminal, Dimensions: 3.31 Inch H x 1.32 Inch W x 1 Inch D, Ivory, Warranty: 1 Year

• Back and side wire termination options accepts 14 - 10 AWG solid and stranded wires, copper-clad aluminum and copper wire
• External pressure plate enables faster installation by eliminating the need to loop wire
• Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect
• Quality materials, durability and time-tested design
• Accepts CCA/copper wire
• Easy to find product marking to ensure compatibility and reduce job shutdown
• Designed with weather-resistance for use in outdoor locations such as decks, patios and pool areas, must be installed in weatherproof enclosure per NEC requirements
• Pairs with while-in-use weather-proof cover

• Brochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_3232TREXWR_Brochure.pdf
• Specification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_3232TREXWR_Specification_Sheet.pdf
