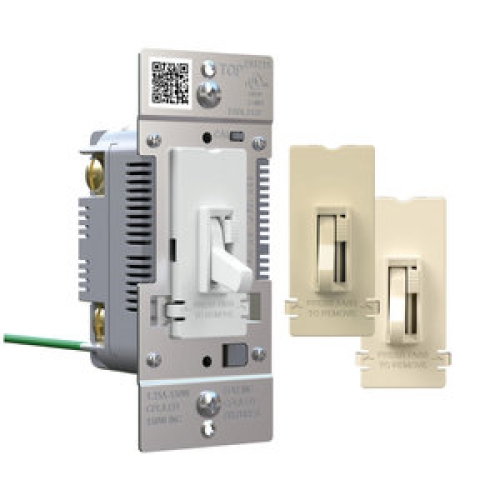

Pass & Seymour® TSDL153PTC

Upgrade your space with the Trademaster® toggle slide LED advanced dimmer. Designed specifically for flicker-free control of today's dimmable LED light bulbs and fixtures, this dimmer features advanced circuitry to offer a superior lighting control experience that works right out of the box. The dimmer switch boasts a variety of user adjustments to adapt to a wide range of dimmable LED lights, eliminating unpleasant flickering, pop-ons and more. Wall plates sold separately. Not intended for use with 0-10 V, magnetic low voltage and electronic low voltage drivers.

Pass & Seymour® Trademaster® Dimmer Switch, 3-Way, 120 VAC, 1.25 A, 150 W Wattage, Slider, Toggle Switch, CFL, Incandescent, LED Lamp, Wall Box Mounting, Screw Terminal, -40 to 40 deg C, Steel/Thermoplastic, Ivory/Light Almond/White, Matte, Dimensions: 4.2 Inch H x 1.74 Inch W x 1.85 Inch D, Warranty: Limited Lifetime

• Specifically designed for use with dimmable LED bulbs and fixtures up to 150 W at 120 VAC. Optimized to work out of the box and provide flicker-free control of LEDs. Not intended for use with 0-10 V, magnetic low voltage or electronic low voltage drivers
• Matches appearance of standard Pass & Seymour® toggle switch, interchangeable face covers available in seven different colors
• Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues
• Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering
• Replaces any basic single-pole or 3-way switch or dimmer in less than 15 min, no neutral wire required, works in both new construction and retrofit applications
• Back wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided
• QR code provided on front face of device to provide easy access to installation guides and videos
• Constant memory feature returns light levels and user adjustments to return to previous settings following a power failure or outage
• Optional LED burst mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop-ons

• Installation Instruction https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TSDL153P_Installation_Instruction.pdf
• Line Drawing https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TSDL153P_Line_Drawing.pdf
• Specification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_TSDL153P_Specification_Sheet.pdf
