KLEIN TOOLS® 51604

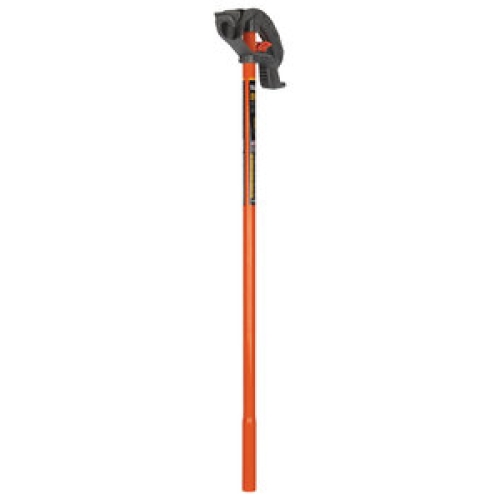

KLEIN TOOLS® 51604 Conduit Bender Full Assembly, 3/4 Inch Nominal, 10 deg, 22 deg, 30 deg, 45 deg, 60 deg, Iron Body

  • Manufacturers: Klein Tools, Inc
  • Brand Name: KLEIN TOOLS®
  • CPEPN: 51604
  • MPN: 51604
  • UPC: 092644516047
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
    • This item does not qualify for free shipping

KLEIN TOOLS® conduit benders with patent pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.

KLEIN TOOLS® Conduit Bender Full Assembly, 3/4 Inch Nominal, 10 deg, 22 deg, 30 deg, 45 deg, 60 deg Bend, 5-1/2 Inch Bend Radius, Iron Body, Dimensions: 44.1 Inch H x 9.8 Inch W x 1.9 Inch D, Includes: 51609 Bender Head, 51427 Handle, 51612 Angle Setter

Nominal Capacity      :      3/4 Inch
Bend Angle      :      10 deg, 22 deg, 30 deg, 45 deg, 60 deg
Bend Radius      :      5-1/2 Inch
Body Material      :      Iron
Dimensions      :      44.1 Inch H x 9.8 Inch W x 1.9 Inch D
Includes      :      51609 Bender Head, 51427 Handle, 51612 Angle Setter
3/4 Inch assembled iron bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends, patent pending Angle Setter™ for use on 10, 22.5, 30 and 45 deg bends (adjusted for conduit spring back)
  • Heavy-duty cast ductile iron has the durability needed on the job site
  • Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
  • Wide foot pedal provides excellent stability, leverage and comfort
  • Interior hook surface prevents conduit from rolling or twisting during bends
  • Includes markings for 10 deg, 22.5 deg, 30 deg, 45 deg, 60 deg and corresponding offset multipliers
  • Features Klein's 3/4 Inch Angle Setter™ (Cat. No. 51612) that creates a hard stop for quick, accurate and consistent bends
  • Designed to bend 3/4 Inch EMT, 1/2 Inch Rigid and 1/2 Inch IMC conduit
