Southwire® 812M24SMTZ
Send Print
  1. pin-int

Southwire® 812M24SMTZ

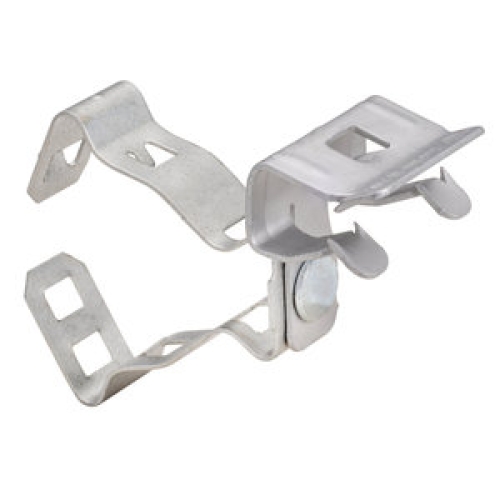

Southwire® 812M24SMTZ Conduit to Flange Clamp, 1/2 Inch, 3/4 Inch, 25 lb, 1/8 - 1/4 Inch Flange, Spring Steel, Geoseal™

  • Manufacturers: Southwire Company, LLC
  • Brand Name: Southwire®
  • CPEPN: 812M24SMTZ
  • MPN: 812M24SMTZ
  • UPC: 751338042612
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

Conduit flange side mount snap close clamps support EMT and rigid conduits from beams. Equipped with a rotatable joint allows the snap-close conduit clip to rotate 360 deg to position conduits in different directions.

Southwire® Conduit to Flange Clamp, Hammer-On, Snap Close, 1/2 Inch, 3/4 Inch Nominal, 25 lb Load, 1/8 - 1/4 Inch Flange, Spring Steel, Geoseal™, Side Mounting

Type      :      Hammer-On, Snap Close
Nominal Size      :      1/2 Inch, 3/4 Inch
Load Capacity      :      25 lb
Flange Size      :      1/8 - 1/4 Inch
Material      :      Spring Steel
Finish      :      Geoseal™
Mounting Type      :      Side
  • Snap close conduit clamp pivots 360 deg
  • Side beam conduit poisoning
  • Secures EMT, rigid and aluminum conduit to beams
  • Hammer-on installation
  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Southwire_16M24TZ_Catalog.pdf
