BrassCraft® G2CPN19XC1
Send Print
  1. pin-int

BrassCraft® G2CPN19XC1

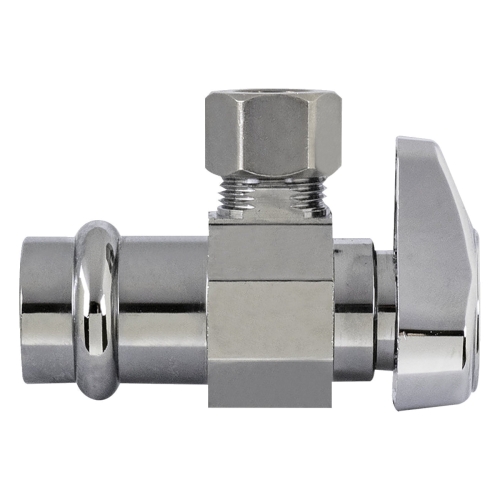

BrassCraft® G2CPN19XC1 Supply Stop Angle Valve, 1/2 x 3/8 Inch, Press x Compression End, 125 psi, 1/4 Turn

  • Manufacturers: BrassCraft Manufacturing Company
  • Brand Name: BrassCraft®
  • CPEPN: G2CPN19XC1
  • MPN: G2CPN19XC1
  • UPC: 026613183718
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
    • This item does not qualify for free shipping

Get the job done right with BrassCraft press connect water stops. With installation capability on both wet and dry pipe systems, our press connect water stops require no oils, fillings, adhesives or sealants during installation. The quarter-turn handle provides a smooth on-off operation and is easy-to-remove, protecting against accidental operation during rough-ins. 100% leak-tested for reliable performance.

BrassCraft® Supply Stop Valve, Angle, 1/2 x 3/8 Inch Nominal, Press x Compression End Style, 125 psi, Water Media, Chrome Plated Brass Body, Brass Compression Sleeve, Glass Filled Polypropylene Stem Shaft Trim, EPDM O-ring Softgoods, 1/4 Turn Handle Style, Temperature Rating: 40 - 160 deg F, Dimensions: 2.28 Inch L x 1.07 Inch W x 1.58 Inch H

Type      :      Angle
Nominal Size      :      1/2 x 3/8 Inch
End Style      :      Press x Compression
Pressure Rating      :      125 psi
Media      :      Water
Body Material      :      Chrome Plated Brass
Trim Material      :      Brass Compression Sleeve, Glass Filled Polypropylene Stem Shaft
Softgoods Material      :      EPDM O-ring
Handle Style      :      1/4 Turn
Temperature Rating      :      40 - 160 deg F
Dimensions      :      2.28 Inch L x 1.07 Inch W x 1.58 Inch H
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Compatible with copper pipe (ASTM B88 tubing)
  • Safe installation without the need for heat or flame
  • 1/4 handle provides easy on/off flow control with a 90 degree turn of the handle
  • One-piece shut-off mechanism provides smooth on-off operation
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Connection capability on both wet and dry systems
  • 100% leak tested to ensure reliable, leak-free performance
  • pdfInstallation Instruction https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BrassCraft_G2CPN19XC1_Installation_Instruction.pdf
  • pdfSell Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BrassCraft_G2CPN14XC1_Sell_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BrassCraft_G2CPN19XC1_Specification_Sheet.pdf
