BrassCraft® G2BRPX09X C
Send Print
  1. pin-int

BrassCraft® G2BRPX09X C

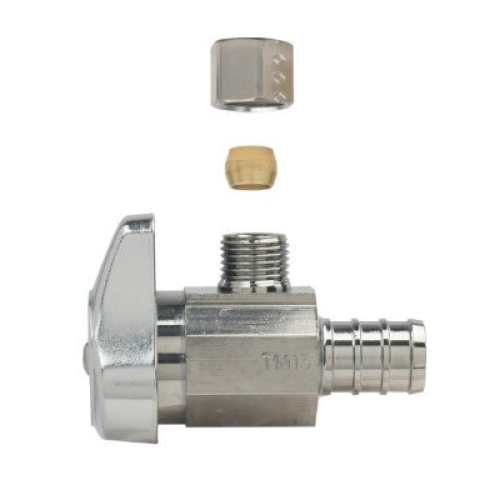

BrassCraft® G2BRPX09X C Angle Supply Stop Valve, 1/2 Inch Crimp PEX Barb x 1/4 Inch OD Compression, Brass

  • Manufacturers: BrassCraft Manufacturing Company
  • Brand Name: BrassCraft®
  • CPEPN: G2BRPX09XC
  • MPN: G2BRPX09X C
  • UPC: 026613160252
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

BrassCraft G2™ Series 1/4-turn stops control water flow at the fixture or appliance with an easy 90 deg turn of the handle.

BrassCraft® Angle Supply Stop Valve, G2 Series, 1/2 x 1/4 Inch Nominal, Crimp PEX Barb x OD Compression End Style, 125 psi, Water Media, Brass Body, 1/4-Turn Handle Style, 40 to 160 deg F, 1.51 Inch L x 2.25 Inch W x 1.07 Inch H, Polished Chrome

Series      :      G2 Series
Nominal Size      :      1/2 x 1/4 Inch
End Style      :      Crimp PEX Barb x OD Compression
Pressure Rating      :      125 psi
Media      :      Water
Body Material      :      Brass
Handle Style      :      1/4-Turn
Temperature Rating      :      40 to 160 deg F
Dimensions      :      1.51 Inch L x 2.25 Inch W x 1.07 Inch H
Color      :      Polished Chrome
Innovative, one-piece shut-off mechanism works smoothly with no freeze-ups
  • Sure-grip handle removes easily to prevent accidental operation during rough-ins
  • Precision machined solid brass body comes in multiple finishes
  • Broad range of angle or straight configurations available
  • Compatible with compression, FIP, CPVC and PEX connections
    • pdfCatalogs https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BrassCraft_G2BRPX09XC_Catalog.pdf
    • pdfInstallation Instructions Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BrassCraft_G2BRPX09XC_Instruction_Installation_Sheet.pdf
