Zoeller® 153-0005

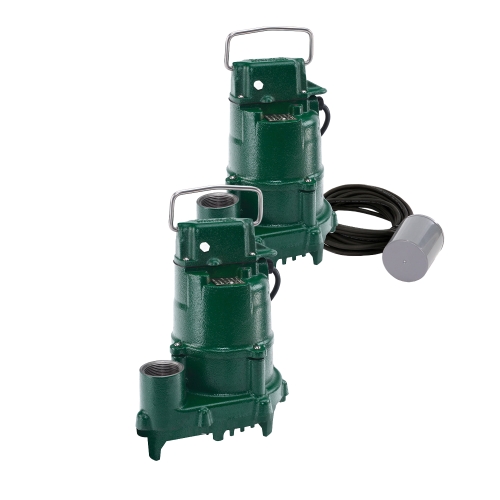

Zoeller® 153-0005 Effluent Pump With Piggyback Switch, 1-1/2 Inch, 77 gpm

  • Manufacturers: Zoeller Company
  • Brand Name: Zoeller®
  • CPEPN: 153-0005
  • MPN: 153-0005
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

    • This product ships for free standard ground only.
    Other options will be charged.

The Model 153 effluent pump is a durable 1/2 hp solution designed for septic, LPP and enhanced flow STEP applications. Featuring a non‑clogging vortex impeller that passes 3/4 Inch solids and a hermetically sealed, oil‑filled motor for optimal cooling, this pump delivers reliable performance in demanding effluent environments. Available in 115 V or 230 V, each unit is factory tested and backed by a 3 years limited warranty.

Zoeller® Effluent Pump With Piggyback Switch, BN153 Series, 77 gpm Flow Rate, 1-1/2 Inch Outlet, 44 ft Maximum Head, Vortex Impeller, 0.5 hp, 115 V, 10.5 A, 3450 rpm Speed, 60 Hz, 3-Wire Neoprene With Molded Plug Cord, 20 ft Cord, 130 deg F, Iron, Finish: Powder-Coated Epoxy, Includes: (1) 1-1/2 x 2 in PVC Adapter and (1) Piggyback Variable Level Float Switch, Warranty: 3 year

Series      :      BN153 Series
Flow Rate      :      77 gpm
Outlet Size      :      1-1/2 Inch
Maximum Head      :      44 ft
Impeller Type      :      Vortex
Power Rating      :      0.5 hp
Voltage Rating      :      115 V
Amperage Rating      :      10.5 A
Speed      :      3450 rpm
Frequency Rating      :      60 Hz
Cord Type      :      3-Wire Neoprene With Molded Plug
Cord Size      :      20 ft
Temperature Rating      :      130 deg F
Material      :      Iron
Finish      :      Powder-Coated Epoxy
Includes      :      (1) 1-1/2 x 2 in PVC Adapter and (1) Piggyback Variable Level Float Switch
Warranty      :      3 year
Oil-filled motor optimizes heat dissipation which prevents the pump from overheating during extended-use occurrences
  • This model is available in both automatic and non‑automatic configurations, the automatic versions include a piggyback float switch for effortless operation, non‑automatic models require either a separate float switch or a control panel to function
  • Built with an engineered plastic vortex impeller to allow free passage of 3/4 Inch spherical solids to prevent the potential for clogging
  • Powder-coated epoxy finish provides corrosion-resistance and extends pump life in harsh environments
  • Stainless steel screws, bolts and handle to prevent rust and corrosion even when installed in an elevator sump pump application
  • Comes standard with a 1-1/2 Inch threaded discharge and a 1-1/2 x 2 Inch PVC male adapter so it will mate up to the most common pipe sizes
  • 100% factory tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
  • Comes with a 3 years limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
    • pdfCatalogs https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zoeller_153-0005_Catalog.pdf
    • pdfInstallation Instructions https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zoeller_153-0005_Instruction_Installation_Sheet.pdf
    • pdfSpecifications Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Zoeller_153-0005_Specification_Sheet.pdf
