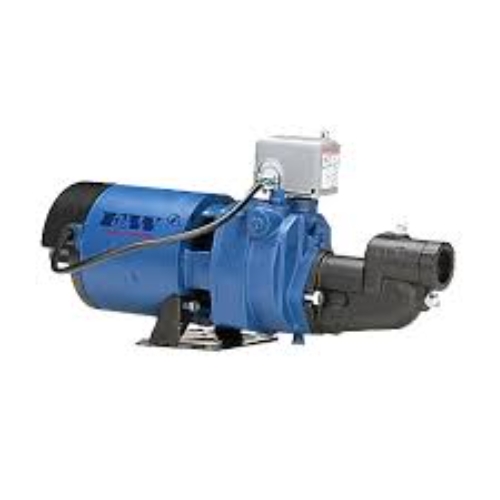

Flint & Walling® EK10S

Flint & Walling® EK Jet Pump, Convertible, Shallow, 1-1/4 Inch Inlet, 1 Inch Outlet, 25 ft Suction Lift, 65 psi Shutoff Head, 1 hp, 115/230 V, 60 Hz, 150 psi Case, 3450 Rpm, Double Ball Bearing Motor, Horizontal Mount, NEMA J, Cast Iron, Includes: Pump, Motor, Pressure Switch and Ejector

Whether operating as a shallow well or deep well pump, count on F & W’s EK jet pumps to deliver more water at full city pressures! these pumps provide higher single stage capacities and pressures; depths to 110 ft (34 m), capacities to 1170 gph (4429 lph) and as much as 50 lb (23 kg) pressure. The EK models feature the famous Flint and walling service plus motor, available with Uni-frame flange construction. The F&W 56 frame, double ball bearing motor offers the ultimate in performance and dependability. Designed for years of trouble-free operation and simple, swift, on-site servicing, the EK features unique interchangeability of replacement parts to keep inventories at a minimum.

• Vertical distance to water: up to 110 ft (34 m) of vertical distance to water for deep well applications
• 30 - 50 psi pressure switch setting

Standard/Approvals: CSA Certified

Application: For shallow well and deep well

• Catalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Flint_Walling_DW40E-1520_Catalog.pdf
• Installation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Flint_Walling_CPH05_Installation_Sheet.pdf
