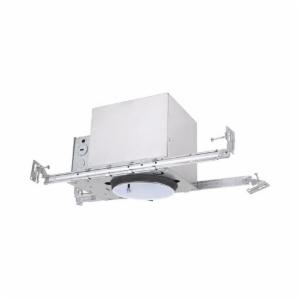

Elite Recessed Lighting Housing, Miniature Air Tight, Series: B4IC, PAR30 Incandescent Lamp, 50 W Lamp, 1 Lamps, Ceiling Mount, 1/2 - 1 Inch, 4 Inch Dia, 5-1/2 Inch Height, 5-1/4 Inch Width, 11-1/2 Inch Depth, Aluminium
| Type | : | Miniature Air Tight |
| Series | : | B4IC |
| Lamp Type | : | PAR30 Incandescent |
| Lamp Wattage | : | 50 W |
| Number of Lamps | : | 1 |
| Mounting Type | : | Ceiling |
| Ceiling Opening Size | : | 1/2 - 1 Inch |
| Diameter | : | 4 Inch |
| Height | : | 5-1/2 Inch |
| Width | : | 5-1/4 Inch |
| Depth | : | 11-1/2 Inch |
| Material | : | Aluminium |
Small aperture housing designed for new construction. Thermally protected, IC rated specification grade recessed housing. Accommodates up to 50W PAR20, R20, and A19 lamps. Furnished with preinstalled adjustable bar hangers. Junction box is provided with four 1/2 inch KOs, one 3/4 inch KO and four Romex knockouts with strain relief.
- Thermally protected IC housing
- Adjustable socket bracket
- Wire through junction box
- Preinstalled adjustable bar hange
- Dependable, favorable design and effortless installation
- 5-1/2 inch height allows use in 2 x 6 inch joist construction
- Special screw on the frame locks bar hangers in place which prevents the housing from any movement once installed
- Preinstalled socket cap provides electrical contact protection against dust, paint and over spray
- 4 x 1/2 inch knockouts
- 4 inch recessed size
Standard/Approvals: UL, cUL, ETL Listed
Application: For Accent and Task Lighting Applications
Specification Sheet
