Elite B4R-AT-W

Elite Recessed Lighting Housing, Miniature Air Shut, Series: B4R, PAR30 Incandescent Lamp, 50 W Lamp, 1 Lamps, Ceiling Mount, 1/2 - 1-3/8 Inch, 4 Inch Dia, 5-1/2 Inch Height, 4-3/8 Inch Width, 11 Inch Depth, Aluminium

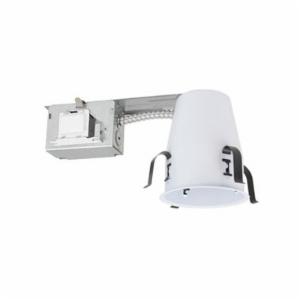

Small aperture thermally protected, specification grade recessed housing. For remodel application non-insulated ceilings or where insulation can be kept 3" from housing. For fast and easy installation in existing plaster or mechanical ceilings from 1/2 inch to 1-3/8" thick. Four remodel clips are easily retractable for fixture removal if necessary. Junction box is provided with eight 1/2 inch KOs and four Romex knockouts with strain relief. Accommodates up to 50W PAR20, R20, and A19 lamps.

• Thermally protected Non-IC remodel housing
• Dependable, favorable design and effortless installation
• Unit slips through 4-1/4 inch ceiling opening
• Four preinstalled spring clips which secure the housing firmly into ceiling to accommodate different ceiling thicknesses from 1/2 Inch to 1-3/8 inch
• Can be installed from below the ceiling
• 5-1/2 inch height allows use in 2 x 6 inch joist construction
• Preinstalled socket cap provides electrical contact protection against dust, paint and over spray
• Adjustable socket bracket
• 4 x 1/2 inch knockouts
• 4 inch recessed size

Standard/Approvals: UL, cUL, ETL Listed

Application: For Accent and Task Lighting Applications
