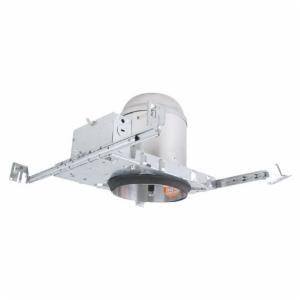

Elite B5IC-AT-W

Elite Recessed Lighting Housing, Universal Air Tight, Series: B5IC, PAR30 Incandescent Lamp, 75 W Lamp, 1 Lamps, Ceiling Mount, 1/2 - 1-3/8 Inch, 5 Inch Dia, 7-1/2 Inch Height, 7-1/2 Inch Width, 12 - 24 Inch Depth, Aluminium

New construction, thermally protected, IC rated specification grade recessed housing. Accommodates up to 75W PAR30, R30 lamps, 60W A19 lamps and 65W BR30 lamps. Furnished with preinstalled adjustable bar hangers. Junction box is provided with four 1/2 inch KOs, one 3/4 inch KO and four Romex knockouts with strain relief.

• Thermally protected IC housing
• Wire through junction box
• Preinstalled adjustable bar hanger
• Dependable, favorable design and effortless installation
• 7 inch height allows use in 2 x 8 inch joist construction
• Special screw on the frame locks bar hangers in place which prevents the housing from any movement once installed
• Preinstalled socket cap provides electrical contact protection against dust, paint and over spray
• 4 x 1/2 inch knockouts
• 5 inch recessed size

Standard/Approvals: UL, cUL, ETL Listed

Application: For Accent and Task Lighting Applications

• Specification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Elite_B5IC_AT_W_Specification_Sheet.pdf
