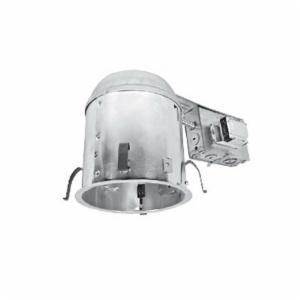

Elite B5RIC-AT-W
Elite B5RIC Universal Air Shut Recessed Lighting Housing, 1 Lamp, 75 W PAR30 Incandescent Lamp, Ceiling Mount
- Manufacturers: Elite Lighting
- Brand Name: Elite
- CPEPN: B5RIC-AT-W
- MPN: B5RIC-AT-W
- UPC: 84780100328
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
Elite Recessed Lighting Housing, Universal Air Shut, Series: B5RIC, PAR30 Incandescent Lamp, 75 W Lamp, 1 Lamps, Ceiling Mount, 1/2 - 1-3/8 Inch, 5 Inch Dia, 7 Inch Height, 7-1/2 Inch Width, 12-5/8 Inch Depth, Aluminium
Thermally protected, IC rated specification grade remodel recessed housing. For remodeling installations where housing will be in direct contact with insulation. For fast and easy installation in existing plaster or mechanical ceilings from ½" to 1-3/8" thick. Four remodel clips are easily retractable for fixture removal if necessary. Junction box is provided with eight 1/2 inch KOs and four Romex knockouts with a strain relief. Accommodates up to 75W PAR30, R30 lamps, 60W A19 lamps and 65W BR30 lamps.
- Thermally protected IC remodel housing
- Dependable, favorable design and effortless installation
- Unit slips through 5-1/2 inch ceiling opening
- Four preinstalled spring clips which secure the housing firmly into ceiling to accommodate ceiling thickness from 1/2 Inch to 1-3/8 inch
- Can be installed from below the ceiling
- 7 inch height allows use in 2 x 8 inch joist construction
- Wire through junction box
- Preinstalled socket cap provides electrical contact protection against dust, paint and over spray
Standard/Approvals: UL, cUL, ETL Listed
Specification Sheet
