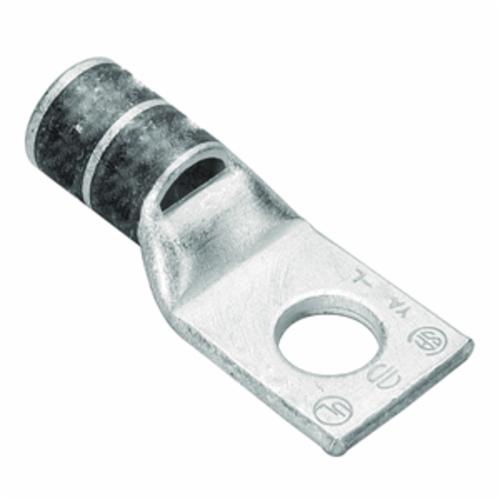

BURNDY® YA2CLBOX

BURNDY® HYLUG™ Compression Lug, 2 AWG, 5/16 Inch Stud, Stranded Conductor, 600 - 35000 VAC

BURNDY® Compression Lug, Series: HYLUG™ , 2 AWG Conductor, 5/16 Inch Stud, Stranded Conductor, 600 - 35000 VAC, Terminal, Brown, Copper, Straight/Standard Tongue, Chamfered/Skived/Standard/Short, 0.61 Inch W Pad, 1 Bolt Hole, 0.42 Inch Dia x 1.93 Inch L, 90 deg C

Series      :      HYLUG™
Conductor Size      :      2 AWG
Stud Size      :      5/16 Inch
Conductor Type      :      Stranded
Voltage Rating      :      600 - 35000 VAC
Connection Type      :      Terminal
Color      :      Brown
Material      :      Copper
Tongue Style      :      Straight/Standard
Barrel Style      :      Chamfered/Skived/Standard/Short
Pad Size      :      0.61 Inch W
Number of Bolt Holes      :      1
Dimensions      :      0.42 Inch Dia x 1.93 Inch L
Temperature Rating      :      90 deg C
  • 10 die index
  • Tin electro plated
  • 35 kV rating
  • 0.33 Inch bolt
  • 15/16 Inch strip
  • With inspection window

Standard/Approvals:CSA Certified, RoHS Compliant, UL Listed

  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA2CLBOX_Specification_Sheet.pdf
  • pdfTechnical Drawing https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA2CLBOX_Technical_Drawing.pdf

    • BURNDY® YA2CLBOX
    • BURNDY® HYLUG™ Compression Lug, 2 AWG, 5/16 Inch Stud, Stranded Conductor, 600 - 3...

    • CPEPN: YA2CL-BOX
    • MPN: YA2CLBOX
    • UPC: 781810551509
