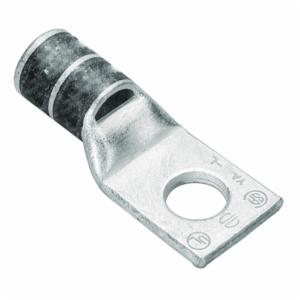

BURNDY® YA28LBOX

BURNDY® HYLUG™ Compression Lug, 4/0 AWG, 1/2 Inch Stud, Stranded Conductor, 600 - 35000 VAC

BURNDY® Compression Lug, Series: HYLUG™ , 4/0 AWG Conductor, 1/2 Inch Stud, Stranded Conductor, 600 - 35000 VAC, Terminal, Purple, Copper, Straight/Standard Tongue, Chamfered/Skived/Standard/Short, 1.02 Inch W Pad, 1 Bolt Hole, 0.69 Inch Dia x 2.46 Inch L, 90 deg C

Series      :      HYLUG™
Conductor Size      :      4/0 AWG
Stud Size      :      1/2 Inch
Conductor Type      :      Stranded
Voltage Rating      :      600 - 35000 VAC
Connection Type      :      Terminal
Color      :      Purple
Material      :      Copper
Tongue Style      :      Straight/Standard
Barrel Style      :      Chamfered/Skived/Standard/Short
Pad Size      :      1.02 Inch W
Number of Bolt Holes      :      1
Dimensions      :      0.69 Inch Dia x 2.46 Inch L
Temperature Rating      :      90 deg C
  • 15 die index
  • Tin plated
  • 35 kV rating
  • 0.52 Inch bolt
  • 1-1/8 Inch strip
  • With inspection window

Standard/Approvals:CSA Certified, RoHS Compliant, UL Listed

  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA28LBOX_Specification_Sheet.pdf
  • pdfTechnical Drawing https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA28LBOX_Technical_Drawing.pdf

  • NoImage
    • BURNDY® YA28LBOX

    • BURNDY® HYLUG™ Compression Lug, 4/0 AWG, 1/2 Inch Stud, Stranded Conductor, 600 - ...

    • CPEPN: YA28L-BOX
    • MPN: YA28LBOX
    • UPC: 781810554104
