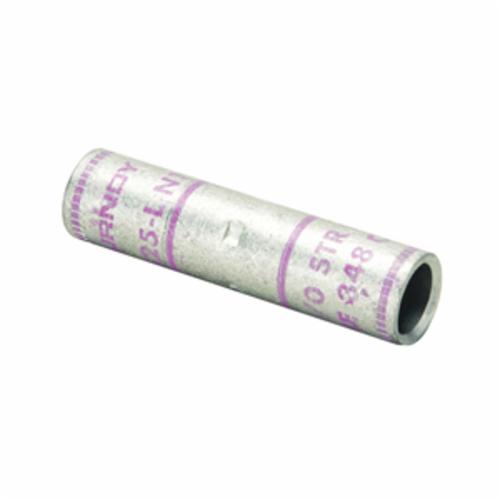

BURNDY® Butt Splice, Compression, Series: HYLINK™ , 2 AWG Conductor, Stranded Conductor, 600 - 35000 VAC, Brown, Copper, Fork Tongue, Chamfered/Standard/Short/Seamless, 0.42 Inch x 2 Inch L, 90 deg C
| Type | : | Compression |
| Series | : | HYLINK™ |
| Conductor Size | : | 2 AWG |
| Conductor Type | : | Stranded |
| Voltage Rating | : | 600 - 35000 VAC |
| Color | : | Brown |
| Material | : | Copper |
| Tongue Style | : | Fork |
| Barrel Style | : | Chamfered/Standard/Short/Seamless |
| Dimensions | : | 0.42 Inch x 2 Inch L |
| Temperature Rating | : | 90 deg C |
- 10, 97 die index
- Tin electro plated
- 35 kV rating
- 15/16 Inch strip
- Seamless heavy duty uninsulated compression fork tongue terminal with a shroud for an insulation grip and cable support
Standard/Approvals:UL 468A/468B, CSA Certified, RoHS Complaint
Specification Sheet
