Sioux Chief 868-7P

Sioux Chief 868 Specialty Urinal Flange Kit, 2 Inch, Inside-Fit Connection, 1-3/4 Inch Bolt Circle, 2, White

  • Manufacturers: Sioux Chief Mfg
  • Brand Name: Sioux Chief
  • CPEPN: 868-7P
  • MPN: 868-7P
  • UPC: 739236376657
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

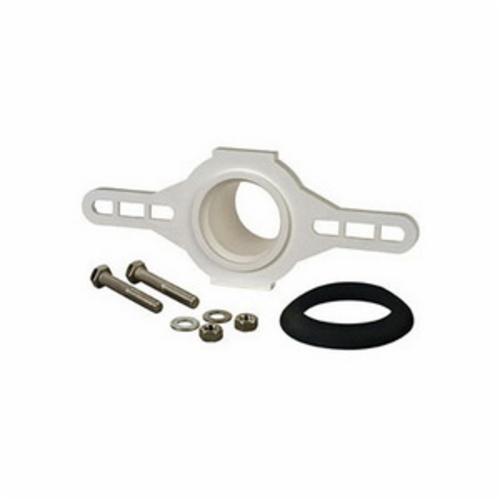

Sioux Chief Urinal Flange Kit, Specialty, Series: 868, 2 Inch, Inside-Fit Connection, SCH 40/STD, 1-3/4 Inch Bolt Circle, 2 Bolt Holes, White, ASTM D2665, Includes: 3-1/2 Inch W x 2-3/8 Inch D x 8-1/8 Inch H PVC Flange, Stainless Steel Bolts, Stainless Steel Nuts, Stainless Steel Washers and Foam Rubber Gaskets

Type      :      Specialty
Series      :      868
Nominal Size      :      2 Inch
End Style      :      Inside-Fit Connection
Schedule Rating      :      SCH 40/STD
Bolt Circle Diameter      :      1-3/4 Inch
Number of Bolt Holes      :      2
Finish      :      White
Industry Standards      :      ASTM D2665
Includes      :      3-1/2 Inch W x 2-3/8 Inch D x 8-1/8 Inch H PVC Flange, Stainless Steel Bolts, Stainless Steel Nuts, Stainless Steel Washers and Foam Rubber Gaskets
Warranty      :      Limted Lifetime

Sioux Chief 868 series urinal flanges shall be used where necessary in drainage systems. Flanges shall have a 2 Inch hub, spigot or inside-fit connection. Connection to DWV system shall be made with a solvent weld joint to ABS/PVC pipe or fitting.

  • Unique inside fit connection allows pipe to be cut flush with finished wall
  • Horizontal slots fit 3-1/2 - 7 Inch mounting centers
