Cutler-Hammer BR215
Send Print
  1. pin-int

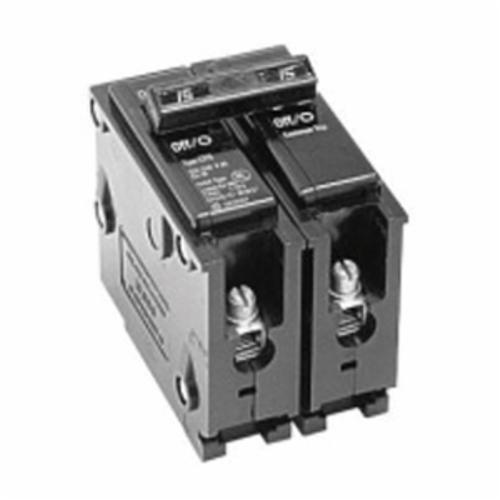

Cutler-Hammer BR215

Cutler-Hammer BR215 Type BR Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Pole Thermal Magnetic Trip, Commercial/Residential, 14 - 4 AWG Copper/Aluminum Wire, Plug-On Mount, 60/70 deg C

Cutler-Hammer Circuit Breaker, Type BR, Commercial/Residential, 120/240 VAC, 15 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 14 - 4 AWG Copper/Aluminum Wire, Plug-On Mount, 60/70 deg C, 3 Inch L x 2 Inch W x 3 Inch H

Type      :      Type BR
Commercial/Residential      :      Commercial/Residential
Voltage Rating      :      120/240 VAC
Amperage Rating      :      15 A
Interrupt Rating      :      10 kA
Trip Type      :      Thermal Magnetic
Number of Poles      :      2
Wire Size      :      14 - 4 AWG Copper/Aluminum
Mounting Type      :      Plug-On
Temperature Rating      :      60/70 deg C
Dimensions      :      3 Inch L x 2 Inch W x 3 Inch H

Eaton offers BR 1 Inch circuit breakers with a thermal-magnetic trip curve that avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions.

  • All BR circuit breakers have rejection tab feature
  • Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design

Application: For HACR application

  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR215_Catalog.pdf
