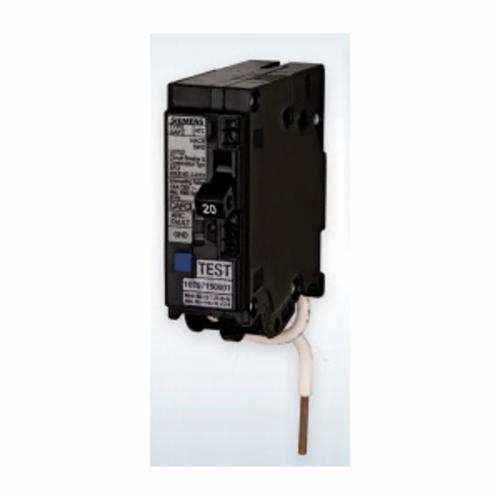

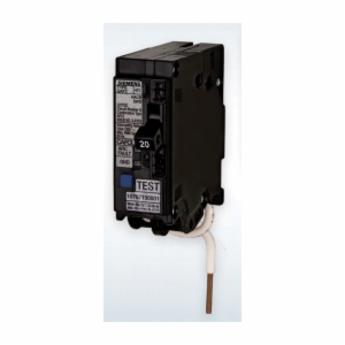

Siemens Q120DFWG
Siemens Dual Function Low Voltage Arc/Ground Fault Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, 5 mA Thermal Magnetic Trip, 60 Hz, QPF2 Frame, 14 - 8 AWG Copper, 12 - 8 AWG Aluminum Wire, Lug Terminal, Plug-On Mount, -20 to 200 deg C
- Manufacturers: Siemens AG
- Brand Name: Siemens
- CPEPN: Q120DFWG
- MPN: Q120DFWG
- UPC: 804766152887
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
Siemens Arc/Ground Fault Circuit Breaker, Dual Function Low Voltage, Residential, 120 VAC, 20 A, 60 Hz, 10 kA Interrupt, QPF2 Frame, Thermal Magnetic Trip, 5 mA Trip, 1 Pole, 14 - 8 AWG Copper, 12 - 8 AWG Aluminum Wire, Lug Terminal, Plug-On Mount, -20 to 200 deg C, 2.76 Inch H x 1 Inch W x 2.76 Inch D
| Type | : | Dual Function Low Voltage |
| Commercial/Residential | : | Residential |
| Voltage Rating | : | 120 VAC |
| Amperage Rating | : | 20 A |
| Frequency Rating | : | 60 Hz |
| Interrupt Rating | : | 10 kA |
| Frame | : | QPF2 |
| Trip Type | : | Thermal Magnetic |
| Trip Range | : | 5 mA |
| Number of Poles | : | 1 |
| Wire Size | : | 14 - 8 AWG Copper, 12 - 8 AWG Aluminum |
| Terminal Type | : | Lug |
| Mounting Type | : | Plug-On |
| Temperature Rating | : | -20 to 200 deg C |
| Dimensions | : | 2.76 Inch H x 1 Inch W x 2.76 Inch D |
- Pre-trimmed and ready to install neutral pigtails
- Oops Loop if extra wire is needed
- Over 4 Inch of gutter space
- Decreased installation time
Standard/Approvals: UL Listed, Switching Duty Rated, HACR Rated, ECCN : EAR99
