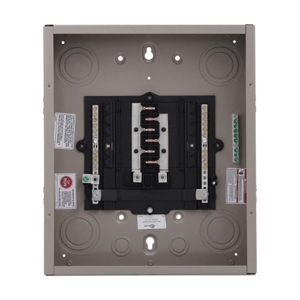

Cutler-Hammer CHP12L125R

Cutler-Hammer CHP12L125R Type CH Main Lug Loadcenter, 120/240 VAC, 125 A, 1 Phase, 24 Circuits, Plug-On Circuit Breaker, 3-Wire Wiring Configuration, Copper Bus, 12 Spaces, 6 - 2/0 AWG Wire, NEMA 3R, Sheet Steel Housing

  • Manufacturers: Eaton
  • Brand Name: Cutler-Hammer
  • CPEPN: CHP12L125R
  • MPN: CHP12L125R
  • UPC: 786689058494
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

Cutler-Hammer Main Lug Loadcenter, Type CH, 120/240 VAC, 125 A, 1 Phase, 24 Circuits, Plug-On Circuit Breaker Type, 3-Wire Wiring Configuration, Copper Bus, 12 Spaces, 6 - 2/0 AWG Wire, Overhead Feed, NEMA 3R, X0 Enclosure Box, Sheet Steel Housing, 16.75 Inch L x 14.31 Inch W x 5.19 Inch H, Includes: Cover

Type      :      Type CH
Voltage Rating      :      120/240 VAC
Amperage Rating      :      125 A
Number of Phases      :      1
Number of Circuits      :      24
Circuit Breaker Type      :      Plug-On
Wiring Configuration      :      3-Wire
Bus Material      :      Copper
Number of Spaces      :      12
Wire Size      :      6 - 2/0 AWG
Feed Type      :      Overhead
Enclosure Type      :      NEMA 3R
Enclosure Box Size      :      X0
Housing Material      :      Sheet Steel
Dimensions      :      16.75 Inch L x 14.31 Inch W x 5.19 Inch H
Includes      :      Cover
  • Optimized knockouts - provide additional access and allow for easier removal improving installation times
  • Top or bottom feed - straight-in wiring saves labor and material
  • One panel for either top or bottom applications
  • Smooth case edges - provide a more professional look and feel
  • 2/0 AWG lug - easily removable and can be installed in any location on the neutral bar
  • Full length neutral bars - offer flexibility of placing electronic breakers at any space within the panel
  • Offer easy installation of neutral connection time and labor savings
  • Inboard neutral - increases gutter space to allow for the installation of conductors
  • One piece silver-flashed copper bus - provides superior conductivity, corrosion resistance and durability
  • Drywall offsets (located on both sides of enclosure) - allow for faster installation using predetermined self-leveling tabs
  • Steel backpan - provides solid and reliable breaker mounting - single piece design for stability and durability
  • "Tangential" center knockout - easier installation for conduit applications
  • Unique sandalwood finish - aesthetically appealing, scratch-resistant powder coating
  • Allow for easy installation of neutral wire connection
  • Plug-on neutral - eliminates the pigtail connection providing time and labor savings; provides a professional installation
  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CHP12L125R_Catalog.pdf
