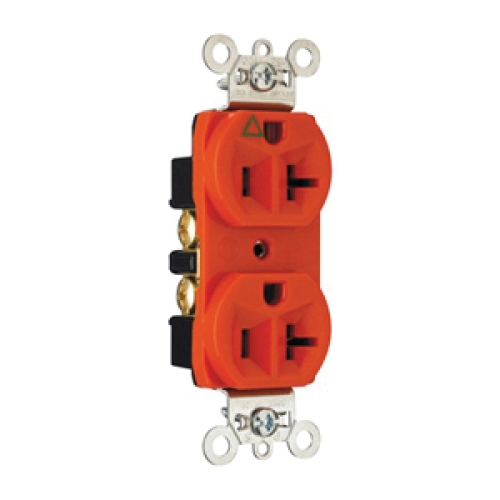

Pass & Seymour® IG5362

Pass & Seymour® IG5362 Isolated Ground Duplex Receptacle, 2 Pole, 3 Wires, 14 - 10 AWG, 20 A, 125 V, 60 Hz, NEMA 5-20R, Screw, Back Wired Terminal, Wall Mount, Isolated Grounding, Thermoplastic, Orange

Pass & Seymour® Duplex Receptacle, Isolated Ground, Commercial, 2 Pole, 3 Wires, 14 - 10 AWG Wire, 20 A, 125 V, 60 Hz, NEMA 5-20R, Screw, Back Wired Terminal, Wall Mount, Isolated Grounding Style, 3.281 Inch H x 1.322 Inch W x 0.922 Inch D, Thermoplastic, Orange

Type      :      Isolated Ground
Commercial/Residential      :      Commercial
Number of Poles      :      2
Number of Wires      :      3
Wire Size      :      14 - 10 AWG
Amperage Rating      :      20 A
Voltage Rating      :      125 V
Frequency Rating      :      60 Hz
Enclosure Type      :      NEMA 5-20R
Terminal Type      :      Screw, Back Wired
Mounting Type      :      Wall
Grounding Style      :      Isolated
Dimensions      :      3.281 Inch H x 1.322 Inch W x 0.922 Inch D
Material      :      Thermoplastic
Color      :      Orange
  • IG symbol and isolated ground markings for easy identification and circuit delineation
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades
  • High-impact resistant nylon face resists impacts and scrapes
  • Corrosion-resistant plated steel strap
  • Patented feature, external screw-pressure plate back wire clamp on ground terminal for faster, easier installation
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes
  • Side and internal screw-pressure plate back wire capability with 14 to 10 AWG copper or copper clad, solid or stranded wire
  • Auto ground clip assures positive ground
