  1. pin-int

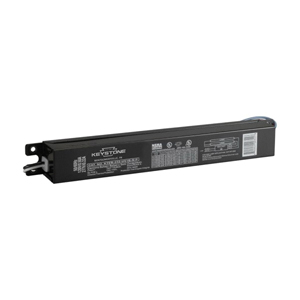

Keystone KTEB-232-UV-IS-N-P

Keystone KTEB-232-UV-IS-N-P Premium Type HL Electronic Ballast, F32T8 Lamp, 32 W, 120 - 277 V, Instant Start, Ballast Factor 0.88, 0.48 A at 120 V, 0.21 A at 277 V, 18 deg C Minimum Starting, Total Harmonic Distortion 10%, Power Factor >0.9, 2 Lamps

  • Manufacturers: Keystone Technologies
  • Brand Name: Keystone
  • CPEPN: KTEB-232-UV-IS-N-P
  • MPN: KTEB-232-UV-IS-N-P
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

Keystone Electronic Ballast, Type HL, Series: Premium, F32T8 Lamp, 32 W, 120 - 277 V, 0.48 A at 120 V, 0.21 A at 277 V, Ballast Factor: 0.88, Instant Start, 18 deg C Minimum Starting, Total Harmonic Distortion: 10%, Power Factor: >0.9, 2 Lamps, 9-1/2 Inch Length, 1.3 Inch Width, 1.18 Inch Height, 167 deg C

Type      :      Type HL
Series      :      Premium
Lamp Type      :      F32T8
Wattage      :      32 W
Voltage Rating      :      120 - 277 V
Amperage Rating      :      0.48 A at 120 V, 0.21 A at 277 V
Ballast Factor      :      0.88
Start Type      :      Instant
Minimum Starting Temperature      :      18 deg C
Total Harmonic Distortion      :      10%
Power Factor      :      >0.9
Number of Lamps      :      2
Length      :      9-1/2 Inch
Width      :      1.3 Inch
Height      :      1.18 Inch
Temperature Rating      :      167 deg C
  • A sound rated
  • High power factor
  • 50/60 Hz frequency
  • 600 V maximum output voltage
  • 600 V maximum voltage to ground
  • Anti-striation circuitry
  • 1.62 at 120 V and 1.64 at 277 V ballast efficacy factor
  • <1.7 crest factor
  • Steel case
  • Lead wires are 18 AWG, 105 deg C/600 V, solid copper
  • Universal voltage
  • Parallel connection
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Keystone_KTEB_232_UV_IS_N_P_Specification_Sheet.pdf
