Lithonia Lighting® WPX2 LED 50K MVOLT PE DDBXD
Send Print
  1. pin-int

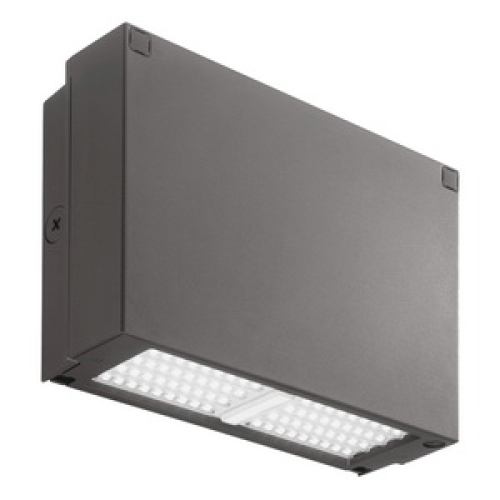

Lithonia Lighting® WPX2 LED 50K MVOLT PE DDBXD

Lithonia Lighting® WPX2 LED 50K MVOLT PE DDBXD WPX2 Wall Pack, 120 - 277 V, 47 W LED Lamp, 6000 Lumens, 5000 K Color

  • Manufacturers: Acuity Brands
  • Brand Name: Lithonia Lighting®
  • CPEPN: WPX2 LED 50K MVOLT PE DDBXD
  • MPN: WPX2 LED 50K MVOLT PE DDBXD
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
    • This item does not qualify for free shipping

WPX wall mount luminaires are cost-effective and energy-efficient making them ideal for HID replacement and budget-constrained new construction projects. The WPX family has four sizes with lumen packages of 850 to 9200 Lumens creating a solution that meets the needs of over-the-door lighting to 400 W metal halide replacement at mounting heights of up to 20 ft. The simple geometric shape of the WPX luminaires allows them to blend with any architecture while the footprint covers the stain left by the fixture it replaces. The WPX features a wide light distribution that creates safe, continuous illumination of the perimeter of the building. Low initial cost, high energy savings, and DLC Premium listing enable fast paybacks, typically less than two years. WPX Size 2 delivers 6000 Lumens making it ideal for perimeter lighting applications and mounting heights of up to 15 ft. The WPX2 can replace up to 250 W metal halide while saving 84% energy costs. The WPX2 is available with self-contained emergency battery back-up option to meet Code requirements without the need of a back-box.

Lithonia Lighting® Wall Pack, Series: WPX2, 120 - 277 V, 47 W Fixture, LED Lamp, 6000 Lumens, 5000 K Color, IP66, Wall Mount, Die Cast Aluminum Housing, 9.1 Inch H x 12.3 Inch W x 4.1 Inch D

Series      :      WPX2
Voltage Rating      :      120 - 277 V
Fixture Wattage      :      47 W
Lamp Type      :      LED
Light Output      :      6000 Lumens
Color Temperature      :      5000 K
Enclosure Type      :      IP66
Mounting Type      :      Wall
Housing Material      :      Die Cast Aluminum
Dimensions      :      9.1 Inch H x 12.3 Inch W x 4.1 Inch D
  • The WPX LED wall packs are designed to provide a cost-effective, energy-efficient solution for the one-for-one replacement of existing HID wall packs
  • The WPX1, WPX2 and WPX3 are ideal for replacing up to 150 W, 250 W and 400 W HID luminaires respectively
  • WPX luminaires deliver a uniform, wide distribution
  • WPX is rated for -40 deg C to 40 deg C
  • WPX feature a die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life
  • The luminaires are IP66 rated, and sealed against moisture or environmental contaminants
  • Dark bronze finish
  • pdfInstallation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WPX1_LED_P2_50K_MVOLT_PE_DDBXD_Installation_Sheet.pdf
  • pdfSell Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WPX1_LED_P2_50K_MVOLT_PE_DDBXD_Sell_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WPX1_LED_P2_50K_MVOLT_PE_DDBXD_Specification_Sheet.pdf
