Lithonia Lighting® TWS LED ALO SWW2 MVOLT PE DDB M2
Send Print
  1. pin-int

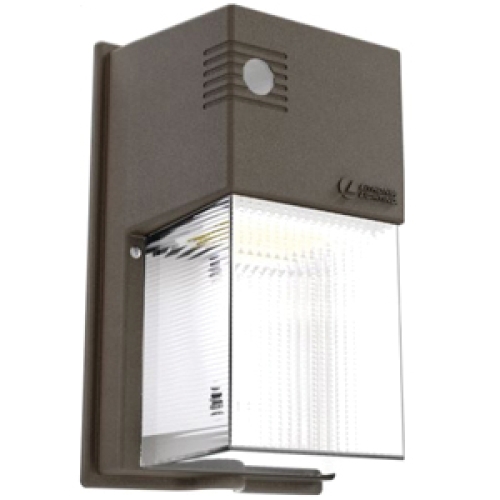

Lithonia Lighting® TWS LED ALO SWW2 MVOLT PE DDB M2

Lithonia Lighting® TWS LED ALO SWW2 MVOLT PE DDB M2 TWS Mini Wall Pack, Dimmable Shade, 70 W, 90%

  • Manufacturers: Acuity Brands Lighting
  • Brand Name: Lithonia Lighting®
  • CPEPN: TWS LED ALO SWW2 MVOLT PE DDB M2
  • MPN: TWS LED ALO SWW2 MVOLT PE DDB M2
  • UPC: 196183403322
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
    • This item does not qualify for free shipping

TWS LED wall packs offer the traditional shape you've grown accustomed to, coupled with the technology you need. Featuring adjustable lumen output (1000/1700/2400), switchable color temperature (3000/4000/5000 K) and a switchable photocell, TWS LED wall packs allow for customized solutions to meet the unique requirements of each job site with 18 configurations in one product. The TWS LED wall pack is ideal for outdoor applications such as personnel doors, loading areas, driveways and parking areas.

Series      :      TWS
Indoor/Outdoor      :      Outdoor
Voltage Rating      :      120 to 277 VAC
Fixture Wattage      :      70 W
Lamp Type      :      LED
Light Output      :      90%
Average Life      :      50000 hr
Light Color      :      White
Color Temperature      :      3000/4000/5000 K
Shade Type      :      Dimmable
Mounting Type      :      Wall
Power Source      :      Hardwired
Housing Material      :      Aluminum/Polycarbonate
Dimensions      :      5.2 Inch L x 6.9 Inch W x 11 Inch H
Includes      :      Hardware
Warranty      :      5 Year Limited
  • Replaces up to 100 W metal halide/70 W HPS, saves 80% energy
  • Traditional form factor and payback within two years
  • Switchable ON/OFF photocell for dusk to dawn operation
  • pdfInstallation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_TWS_LED_ALO_SWW2_MVOLT_PE_DDB_M2_Installation_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_TWS_LED_ALO_SWW2_MVOLT_PE_DDB_M2_Specification_Sheet.pdf
