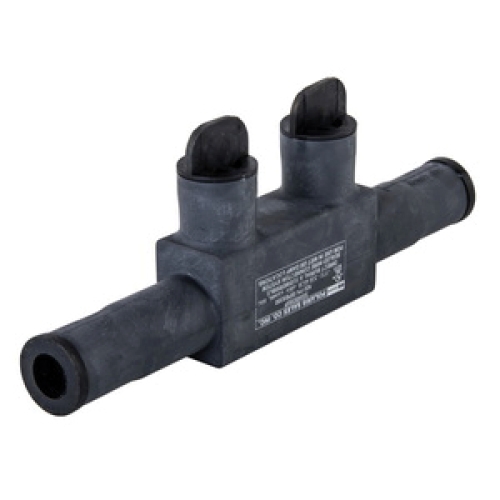

Nsi ISPBS350

Polaris edge multi-tap direct burial connectors form secure connections between multiple conductors and feature a squared-off design and EPDM rubber insulation coating for temporary submersion or direct burial. Installs with a hex key and torque wrench, with no need for cover and taping.

Nsi Pedestal Connector, Multi-Tap, Series: Polaris Edge, 50 MCM - 10 AWG Al, 350 MCM - 10 AWG Cu Conductor, Aluminum, Copper Conductor, Class B, Class C Insulation, EPDM Insulation, 600 V, 280 A Al, 350 A Cu, Black, Aluminum, Dimensions: 8.71 Inch L x 1.69 Inch W x 3.39 Inch H, -49 - 94 deg F

• In-line wire entry - form secure connections between two conductors quickly using the in-line entry ports sized for wires between 350 mcm and 10 AWG
• Direct burial applications - high-strength aluminum alloy body and rubber insulation with a nominal thickness of 125 mils built for temporary submersal or direct burial applications
• Squared-off design - the EPDM rubber insulation features square corners and is UV, abrasion and chemical-resistant for durable performance
• Pre-filled oxide inhibitor - both entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to prevent corrosion or contamination
• Professional performance - the durable layer of insulation on each polaris connector is UV, abrasion and chemical-resistant for reliable performance

• Installation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/NSI_ISPBS350_Installation_Sheet.pdf
• Specification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/NSI_ISPBS350_Specification_Sheet.pdf
