SPI 50A006

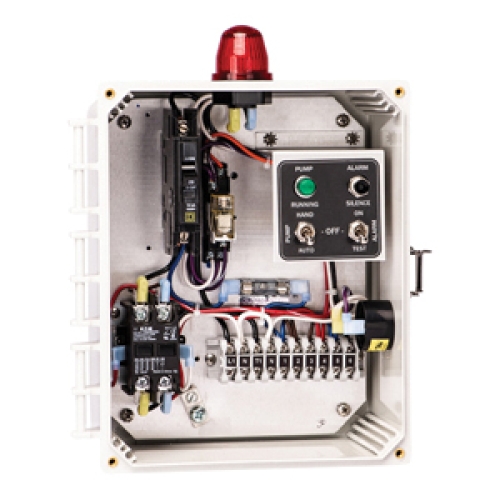

SPI 50A006 Simplex Demand Box, 120/208/240 VAC

  • Manufacturers: Septic Products Inc
  • Brand Name: SPI
  • CPEPN: 50A006-ME20
  • MPN: 50A006
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
    • This item does not qualify for free shipping

SPI Simplex Demand Box, 120/208/240 VAC, NEMA 4X Enclosure, Dimensions: 10-1/4 Inch L x 5-1/4 Inch W x 12-1/8 Inch H

Voltage Rating      :      120/208/240 VAC
Enclosure Type      :      NEMA 4X
Dimensions      :      10-1/4 Inch L x 5-1/4 Inch W x 12-1/8 Inch H
  • 4X rated durable, weather-resistant enclosure with mounting feet and stainless steel latch
  • Main circuit breaker
  • DP-rated motor contactor
  • Easy-to-access, finger-safe terminal block
  • Secondary fuse protection for control circuit
  • Pump hand-off-auto switch with pump run light
  • Full alarm circuit (visual and audible alarms)
  • Alarm test and silence switches
  • Color-coded internal wiring
  • Connection diagram and schematic
  • Three-float system (off, on, high water)
