Matco-Norca™ 26-1003PXLF
Send Print
  1. pin-int

Matco-Norca™ 26-1003PXLF

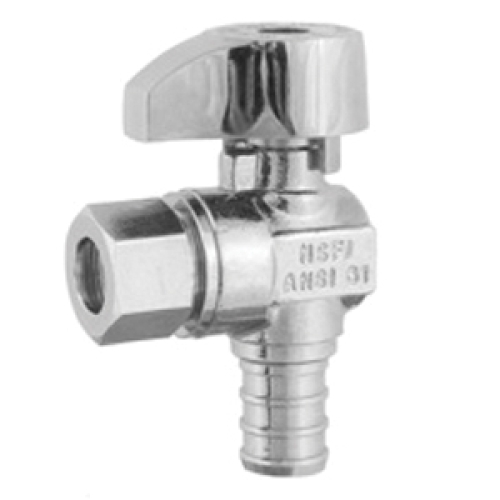

Matco-Norca™ 26-1003PXLF Angled Angle Supply Valve, 1/2 x 3/8 Inch, PEX x Compression. 1/4 Turn

  • Manufacturers: Matco-Norca
  • Brand Name: Matco-Norca™
  • CPEPN: 26-1003PXLF
  • MPN: 26-1003PXLF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

Matco-Norca™ Angle Supply Valve, Angled, 1/2 x 3/8 Inch Nominal, PEX x Compression End Style, 125 psi Pressure, Chrome-Plated Lead Free Brass Body, NBR O-Ring, PTFE Packing Softgoods, 32 - 160 deg F, Dimensions: 2.3 Inch L

Type      :      Angled
Series      :      1/4 Turn
Nominal Size      :      1/2 x 3/8 Inch
End Style      :      PEX x Compression
Pressure Rating      :      125 psi
Body Material      :      Chrome-Plated Lead Free Brass
Softgoods Material      :      NBR O-Ring, PTFE Packing
Temperature Rating      :      32 - 160 deg F
Dimensions      :      2.3 Inch L
  • pdfSpecification_Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Matco_Norca_26_1003PXLF_Specification_Sheet.pdf
