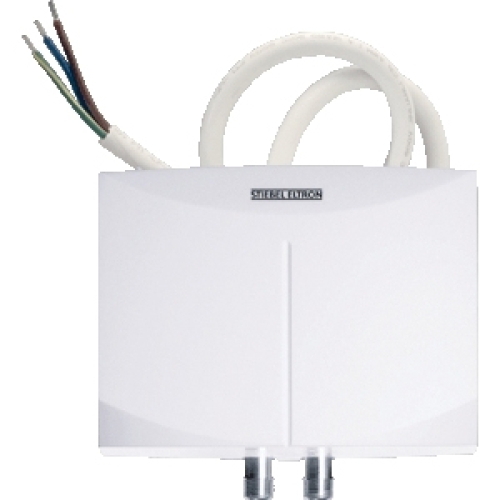

he Stiebel Eltron Mini™ tankless water heaters are designed for installation at the point-of-use, or under the sink. The Mini™ heats water instantaneously as it flows through the unit. Stand by heat losses are completely eliminated. The efficient heating elements are controlled by a simple flow switch. Additionally, all Mini™ water heaters are equipped with a safety high limit with manual reset.
STIEBEL ELTRON Electric Water Heater, Tankless, Series: Mini-E, 120 V, 29 A, 3.5 kW, 50/60 Hz, Single Phase Electrical Rating, 0.4 gpm Flow Rate, 99% Energy Efficiency, 3/8 Inch OD Water Connection, 86 - 122 deg F, Dimensions: 6-1/2 Inch H x 7-1/2 Inch W x 3-1/4 Inch D, Warranty: 3 Years
| Type | : | Tankless |
| Series | : | Mini-E |
| Electrical Ratings | : | 120 V, 29 A, 3.5 kW, 50/60 Hz, Single Phase |
| Flow Rate | : | 0.4 gpm |
| Energy Efficiency | : | 99% |
| Water Connection | : | 3/8 Inch OD |
| Temperature Rating | : | 86 - 122 deg F |
| Dimensions | : | 6-1/2 Inch H x 7-1/2 Inch W x 3-1/4 Inch D |
| Warranty | : | 3 Years |
- Extremely compact design saves space
- Major energy savings
- Unlimited supply of hot water
- Proven reliability
- Sleek design is appealing and can be mounted in plain sight
- Can be mounted with fittings pointing up or down
- Pre-wired pigtail included
- Only 7-1/2 x 6-1/2 Inch
