SATCO® S11840

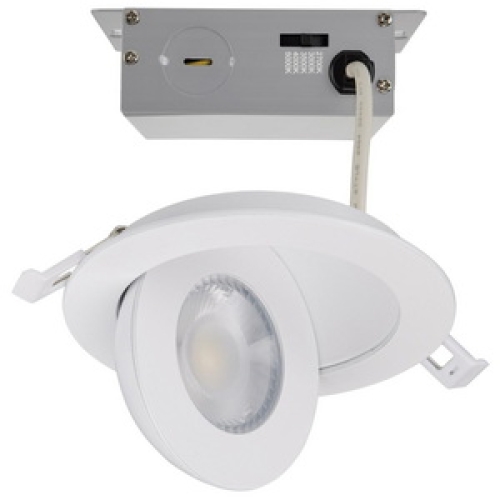

SATCO® S11840 Gimbal Downlight With Remote Driver, 9 W, LED, 1 Lamp, 4 Inch Ceiling Opening, White

  • Manufacturers: SATCO Lighting
  • Brand Name: SATCO®
  • CPEPN: S11840
  • MPN: S11840
  • UPC: 045923118401
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

These low profile, 5 CCT selectable remote driver downlights deliver multiple advantages to any general recessed lighting project. With 360 deg rotation and 0 - 80 deg aiming capability, efficient LED light can be delivered wherever it’s needed. The remote driver makes for more installation flexibility. No recessed can is required, it fits neatly into shallow ceilings, cabinets, low-clearance basement ceilings and more. These downlights work for both new and existing construction, are damp location rated and energy star certified.

SATCO® Gimbal Downlight With Remote Driver, Type: CCT Selectable, Dimmable, Direct Wire, 120 V, 9 W Fixture Wattage, 0.075 A, LED Lamp, Integrated Lamp Base, 1 Lamp, 650 - 750 Lumens Light Output, 4 Inch Ceiling Opening, Round Recessed Trim, 50000 hr Average Life, Warm to Cool White Light, 2700/3000/3500/4000/5000 K, 90 CRI, White Housing, 1.42 Inch H x 4.92 Inch W, Warranty: 5 Year Limited

California residents see Prop 65 WARNINGS

Type      :      CCT Selectable, Dimmable, Direct Wire
Voltage Rating      :      120 V
Fixture Wattage      :      9 W
Amperage Rating      :      0.075 A
Lamp Type      :      LED
Lamp Base      :      Integrated
Number of Lamps      :      1
Light Output      :      650 - 750 Lumens
Ceiling Opening      :      4 Inch
Recessed Trim Type      :      Round
Average Life      :      50000 hr
Light Color      :      Warm to Cool White
Color Temperature      :      2700/3000/3500/4000/5000 K
Color Rendering Index (CRI)      :      90
Housing Finish      :      White
Dimensions      :      1.42 Inch H x 4.92 Inch W
Warranty      :      5 Year Limited
  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11840_Catalog.pdf
  • pdfInstallation Instruction Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11840_Installation_Instruction_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11840_Specification_Sheet.pdf
  • pdfTechnical Drawings https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11840_Technical_Drawings.pdf
