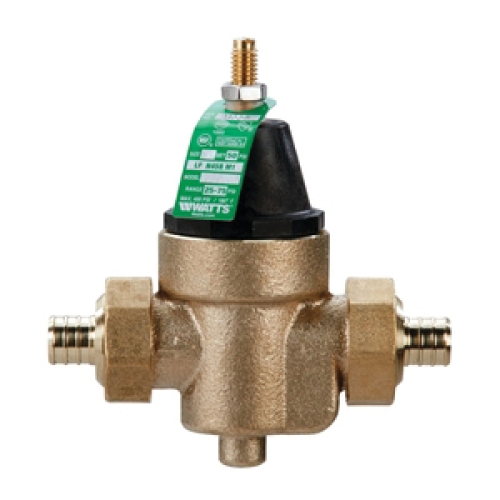

Watts® 34-LFN45BM1-DU-PEXXPEX
WATTS® 34-LFN45BM1-DU-PEXXPEX LFN45B-M1 Series Pressure Reducing Valve, 3/4 Inch, Union Pex
- Manufacturers: Watts Water Technologies
- Brand Name: Watts®
- CPEPN: 34-LFN45BM1-DU-PEXXPEX
- MPN: 34-LFN45BM1-DU-PEXXPEX
- UPC: 098268332520
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
This 3/4 Inch lead-free water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead-fee cast copper silicon alloy body, integral stainless steel strainer and thermal expansion bypass. It features double union PEX end connections. The maximum working pressure is 400 psi (27.6 bar), and may be adjusted from 25 to 75 psi (172 to 517 kPa). The standard setting is 50 psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line.
WATTS® Pressure Reducing Valve, Series: LFN45B-M1 Series, 3/4 Inch Nominal, Union Pex End Style, 25 to 75 psi Pressure, Media: Water, Copper Silicon Alloy Body, Stainless Steel Trim, Thermoplastic Softgoods, EPDM Diaphragm, 33 to 180 deg F, Warranty: Limited
| Series | : | LFN45B-M1 Series |
| Nominal Size | : | 3/4 Inch |
| End Style | : | Union Pex |
| Pressure Rating | : | 25 to 75 psi |
| Media | : | Water |
| Body Material | : | Copper Silicon Alloy |
| Trim Material | : | Stainless Steel |
| Softgoods Material | : | Thermoplastic |
| Diaphragm Material | : | EPDM |
| Temperature Rating | : | 33 to 180 deg F |
| Warranty | : | Limited |
- Lead-free body construction
- PEX union inlet and outlet
- Integral stainless steel strainer removable for cleaning
- Sealed spring cage for accessible outdoor or pit installations
- Double union inlet and outlet NPT connections
- Thermoplastic seat and cage
- Bypass feature controls thermal expansion pressure
