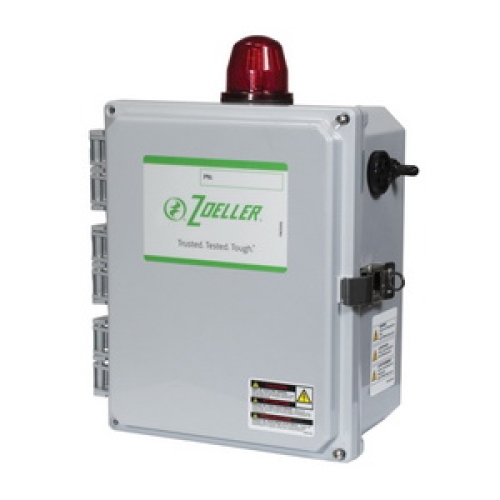

Pivot RL, 51354-0001, is the newest control panel designed and made by Zoeller. It is 1 Phase, 115/208/240 V, Simplex with basic LEDs, buzzer, globe and dry contacts. The 51354-0002 variation additionally includes a cycle counter and elapsed time meter. Please note that Pivot RL is an entry level panel that does not include all the advanced logic and features of other Pivot panels.
Zoeller® Control Panel, The Pivot RL Series Series, 120/200/230 V, Amperage Rating 20 A, NEMA 4X Enclosure, 10 Inch H x 8 Inch W x 4 Inch D, Warranty: 3 Year Limited
| Series | : | The Pivot RL Series |
| Voltage Rating | : | 120/200/230 V |
| Amperage Rating | : | 20 A |
| Enclosure Type | : | NEMA 4X |
| Dimensions | : | 10 Inch H x 8 Inch W x 4 Inch D |
| Warranty | : | 3 Year Limited |
- Red/amber/green LED's for float switch indicators, pump run, high water, system ready and HOA functions
- Ample room within the panel around the terminal block for field wiring
- Test toggle will check all LED's, globe and horn
- Cycle counter and elapsed time meter included
- 3 year limited warranty - this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
