Lithonia Lighting® ESXF4 ALO SWW2 YS DDB M2
Send Print
  1. pin-int

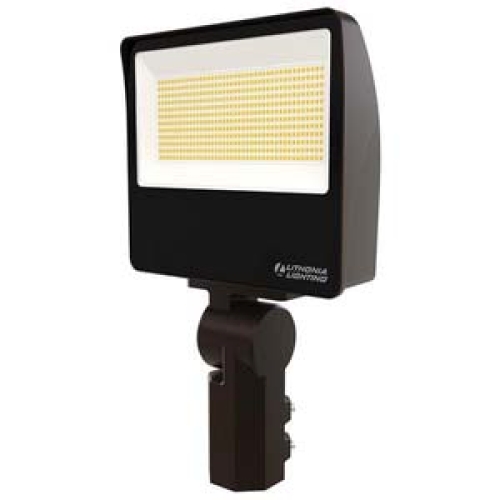

Lithonia Lighting® ESXF4 ALO SWW2 YS DDB M2

Lithonia Lighting® Contractor Select™ ESXF4 ALO SWW2 YS DDB M2 Adjustable Dimmable Flood Light, 80

  • Manufacturers: Acuity Brands
  • Brand Name: Lithonia Lighting®
  • CPEPN: ESXF4 ALO SWW2 YS DDB M2
  • MPN: ESXF4 ALO SWW2 YS DDB M2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
    • This item does not qualify for free shipping

The Lithonia Lighting® ESXF4 LED floodlight is an all-in-one flood that gives ultimate versatility by offering 36 configurations in one product while delivering on superior illumination and offers easy access to controls for color switching, lumen switching and selectable photocell. ESXF4 comes with the two most common mountings already included in the box, making on-the-spot reconfiguring quick and easy. No more go-backs. The ESXF family has five sizes with lumen packages ranging from 1500 to 50000 lumens and are designed to replace 150 W to 500 W quartz or 75 W to 1000 W HID floodlights. Suitable for both professionals and DIYers, these floodlights offer a wide flood distribution (7x7) and DLC Premium performance, making it a one-stop-shop for all floodlighting needs.

Lithonia Lighting® Flood Light, Adjustable, Dimmable, Series: ESXF Series, 120 - 277 V, 150 W Fixture, LED Lamp, 1 Lamps, 16000 to 20000 Lumens Light Output, White Light, 3000/4000/5000 K Color Temperature, 80 CRI, Tempered Glass Lens, IP66 Enclosure, Tenon Slipfitter, Yoke Mounting, Aluminum Housing Material, Includes: 18 Inch SO Cord, Warranty: 5 Year

Type      :      Adjustable, Dimmable
Series      :      ESXF Series
Voltage Rating      :      120 - 277 V
Fixture Wattage      :      150 W
Lamp Type      :      LED
Number of Lamps      :      1
Light Output      :      16000 to 20000 Lumens
Light Color      :      White
Color Temperature      :      3000/4000/5000 K
Color Rendering Index (CRI)      :      80
Lens Type      :      Tempered Glass
Enclosure Type      :      IP66
Mounting Type      :      Tenon Slipfitter, Yoke
Housing Material      :      Aluminum
Includes      :      18 Inch SO Cord
Warranty      :      5 Year
  • Five sizes deliver 1500 up to 50000 Lumens
  • Three power levels of adjustable lumen output, switchable CCT(30K/40K/50K) offers warm, cool and daylight in a single fixture
  • Standard photocell can be turned on or off
  • IP66 rated, die-cast aluminum housing
  • Two popular mounting options included
  • Up to 173 LPW
  • pdfInstruction Installation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ESXF4_ALO_SWW2_YS_DDB_M2_Instruction_Installation_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ESXF4_ALO_SWW2_YS_DDB_M2_Specification_Sheet.pdf
