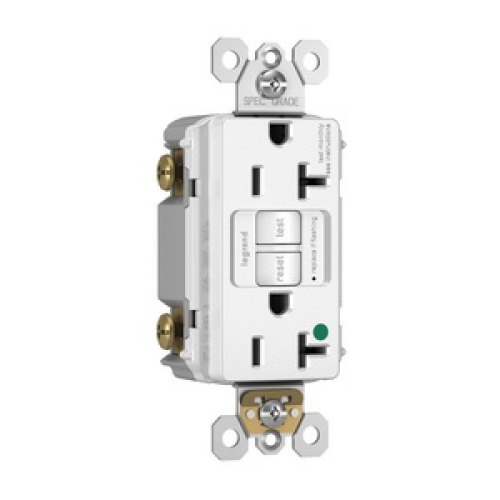

Pass & Seymour® 2097HGW

Pass & Seymour® 2097HGW Duplex GFCI Receptacle with SafeLock® Protection, 20 A, 125 V, 2-Pole, 3-Wire, Matte White

  • Manufacturers: Legrand
  • Brand Name: Pass & Seymour®
  • CPEPN: 2097HGW
  • MPN: 2097HGW
  • UPC: 785007035896
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

The new Pass & Seymour® hospital-grade self-test GFCI receptacle with SafeLock® protection conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.

Pass & Seymour® Duplex GFCI Receptacle with SafeLock® Protection, Hospital-Grade, Commercial, 2 Pole, 3 Wires, 14 - 10 AWG Wire, 20 A, 125 V, 60 Hz Frequency, Back and Side Wired Connection, Screw Terminal, Dimensions: 4.2 Inch H x 1.73 Inch W x 1.03 Inch D, Nylon, Matte White, NEMA 5-20R NEMA Rating, Includes: Wall Plate, Warranty: 1 Year Limited

Type      :      Hospital-Grade
Commercial/Residential      :      Commercial
Number of Poles      :      2
Number of Wires      :      3
Wire Size      :      14 - 10 AWG
Amperage Rating      :      20 A
Voltage Rating      :      125 V
Frequency Rating      :      60 Hz
Connection Type      :      Back and Side Wired
Terminal Type      :      Screw
Dimensions      :      4.2 Inch H x 1.73 Inch W x 1.03 Inch D
Material      :      Nylon
Finish      :      Matte White
Includes      :      Wall Plate
Warranty      :      1 Year Limited
  • Patented SafeLock® protection - if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected
  • Tamper-resistant automatic shutter system prevents young children from inserting common household objects
  • The indicator light flashes - if the device fails the self-test, signaling that the GFCI should be replaced
  • Side or internal screw-pressure plate back wire termination with 14 - 10 AWG stranded or solid, copper or copper-clad conductors
  • Captive screws make for easier installation
  • Ground terminal clamp allows for fast installation
  • Two back-wire holes per termination - add wiring flexibility, eliminate pigtailing and save box space
  • Prevents line-load reversal miswire - no power to the face or downstream receptacles if wired incorrectly
  • High-impact-resistant, thermoplastic construction for superior strength and durability
  • Thinner profile speeds installation by leaving more room for wires in the box
  • Auto-ground clip assures a positive ground to metal box
