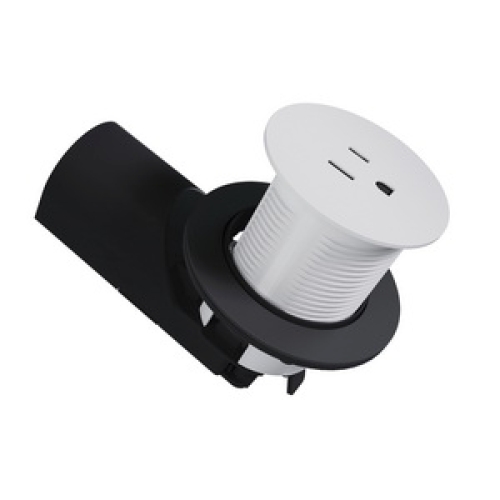

Pass & Seymour® CP498TR15W

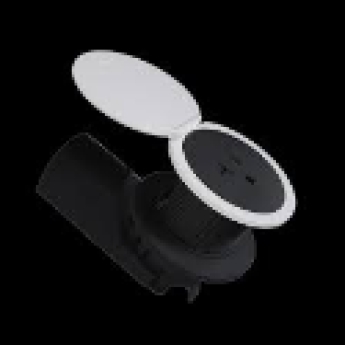

The kitchen countertop outlet is a code-compliant, UL 498-certified solution for kitchen islands and peninsulas, featuring a compact design and quick connection for easy installation. Passing a strict half-gallon spill test, the outlet ensures reliability and performance, offering the utmost safety for homeowners. The outlet can withstand strong wear and tear, with built-in corrosion/chemical-resistance, and the surface-mount design makes everyday cleaning easy to help maintain long-term aesthetic. Purchase the outlet with an optional lid, which comes in four cast metal options to match or complement kitchen finishes.

Pass & Seymour® Kitchen Countertop Outlet, Tamper-Resistant, Residential Commercial/Residential, 2 Pole, 14 - 10 AWG Wire, 15 A, 125 V, Back Wired Connection, Screw Terminal, Surface Mounting, Dimensions: 3.7 Inch H x 2.3 Inch W x 3.6 Inch D, Matte White, NEMA 5-15R NEMA Rating, Warranty: 1 Year Limited

• Code Compliant with NEC 2023 406.5 (E), a standard to be adopted by roughly 50% of US states by the end of 2026
• UL 498 rated for countertop or work surface assembly, ensuring reliability and performance
• Features a quick connecting termination tail that is wired above the counter and a hand-turn nut that requires no tools under the counter
• Required installation downstream or connected to a GFCI breaker
• Requires a 2 - 2-1/4 Inch hole drilled into the countertop, which is dependent on the inclusion of a lid (an extra 1/4 Inch is required with a lid)
• Compact, surface-mount design blends in with design aesthetic and kitchen finishes
• Can withstand heavy wear and tear and is corrosion/chemical-resistant
• For use on kitchen island or peninsula countertops
• Features tamper-resistant shutters to protect against insertion of foreign objects
• Smallest profile in the industry, compared to the competition, it has a smaller diameter and less depth, taking up nearly 40% less space on and under the counter
• Receptacle and tail assembly is suitable for install without a junction box

• Cut Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_&_Seymour_CP498LBK_Cut Sheet.pdf
• Installation Instruction https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_&_Seymour_CP498TR15BK_Installation Instruction.pdf
• Line Drawing https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_&_Seymour_CP498TR15BK_Line Drawing.pdf
