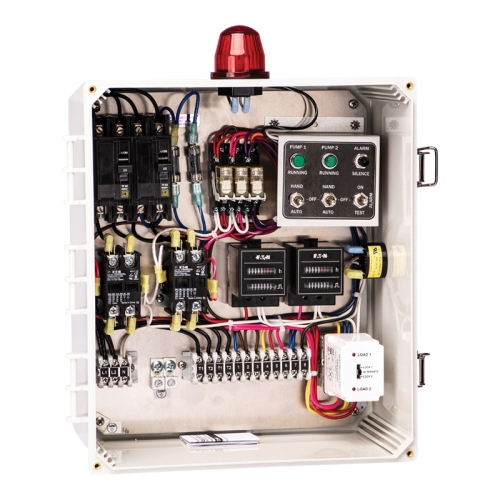

SPI Duplex Demand Control Panel, 120/240 V, 0 - 20 A, NEMA 4X Enclosure, Dimensions: 14-5/8 Inch H x 12-1/8 Inch W x 7-3/8 Inch D, Includes: (3) 20 ft Mechanical Float Switches
| Voltage Rating | : | 120/240 V |
| Amperage Rating | : | 0 - 20 A |
| Enclosure Type | : | NEMA 4X |
| Dimensions | : | 14-5/8 Inch H x 12-1/8 Inch W x 7-3/8 Inch D |
| Includes | : | (3) 20 ft Mechanical Float Switches |
- 4X rated durable, weather-resistant enclosure with mounting feet and stainless steel latch
- Individual pump circuit breakers
- DP-rated motor contactors
- Easy-to-access, finger-safe terminal block
- Secondary fuse protection for control circuit
- Pump hand-off-auto switch with pump run lights
- Alternating relay for pump alternation with selector switch
- Full alarm circuit (visual and audible alarms)
- Alarm test and silence switches
- Color-coded internal wiring
- Connection diagram and schematic
- Four-float system (off, on, lag, high water)
