Siemens MK0816B1400RLT

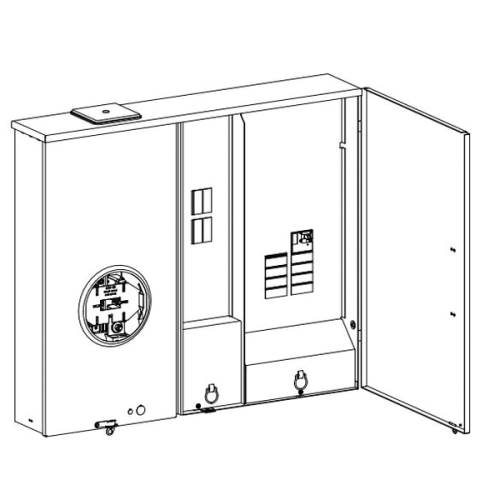

Siemens MK0816B1400RLT Combination Meter Load Center, 120/240 VAC, 400 A, 16-Circuit, 8-Space, Surface Mount, NEMA 3R

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • CPEPN: MK0816B1400RLT
  • MPN: MK0816B1400RLT
  • UPC: 783643484146
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
  • This product ships for free standard ground only.
    Other options will be charged.

Siemens Combination Meter Load Center, 120/240 VAC, 400 A, 1 ph, 200 A Interrupt, 16 Circuits, 3-Wire Wiring Configuration, 8 Spaces, Over Head or Underground Feed, Surface Mounting, NEMA 3R Enclosure, Dimensions: 34.15 Inch L x 29.17 Inch W x 6.31 Inch H

Voltage Rating      :      120/240 VAC
Amperage Rating      :      400 A
Number of Phases      :      1 ph
Interrupt Rating      :      200 A
Number of Circuits      :      16
Wiring Configuration      :      3-Wire
Number of Spaces      :      8
Feed Type      :      Over Head or Underground
Mounting Type      :      Surface
Enclosure Type      :      NEMA 3R
Dimensions      :      34.15 Inch L x 29.17 Inch W x 6.31 Inch H
  • Ringless type meter cover
    • 320 A continuous meter socket rating
        4-jaw, lever operated bypass with jaw tension release
          Service disconnects in separate compartments
            7/8 and 7/16 Inch barrel lock provisions
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Siemens_MK0816B1400RLT_Specification_Sheet.pdf
