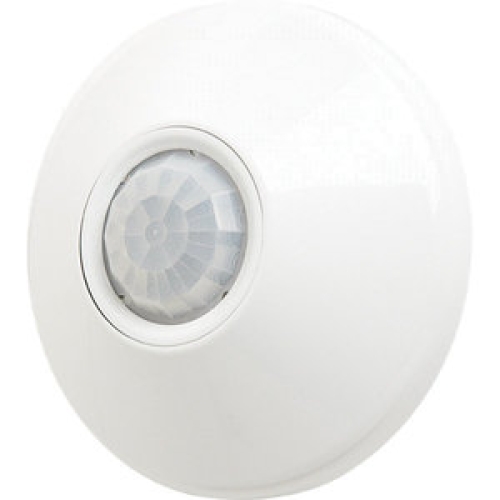

Lithonia Lighting® CMR9
Lithonia Lighting® SensorSwitch™ CMR9 Line Voltage Sensor, 120/277 VAC, PIR Occupancy Sensor, Small Motion, 360 deg Coverage
- Manufacturers: Acuity Brands
- Brand Name: Lithonia Lighting®
- CPEPN: CMR9
- MPN: CMR9
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
The CMR is a line voltage sensor that easily mounts directly to a ceiling. Ceiling-mount sensors are offered in a multitude of configurations which address many applications. Lens options include large motion extended range, small motion standard range and bi-directional for hallways. These sensors are capable of covering an entire private office or small room by themselves. A line voltage sensor provides one relay for a single-level control, while the two-pole version provides a second relay for an additional level of control. For rooms with obstructions, these sensors are also offered with dual technology, which adds Microphonics™ detection to the passive infrared (PIR) detection.
Lithonia Lighting® SensorSwitch™ Line Voltage Sensor, Small Motion, Series: CMR Series, 120/277 VAC, PIR Occupancy Sensor, 360 deg Sensing, Ceiling Mounting, 14 to 140 deg F, White, Matte, Dimensions: 4.55 Inch W x 1.55 Inch D, Warranty: 5 Year Limited
| Type | : | Small Motion |
| Series | : | CMR Series |
| Voltage Rating | : | 120/277 VAC |
| Sensor Type | : | PIR Occupancy |
| Sensing Angle | : | 360 deg |
| Mounting Type | : | Ceiling |
| Temperature Rating | : | 14 to 140 deg F |
| Color | : | White |
| Finish | : | Matte |
| Dimensions | : | 4.55 Inch W x 1.55 Inch D |
| Warranty | : | 5 Year Limited |
- PIR occupancy detection
- 360 deg coverage
- Self-contained relay (no power pack needed)
- Time delay - 30 sec to 20 min
- No minimum load requirements
- Push-button programmable
- Green LED indicator
- 100 hr lamp burn-in timer mode
Installation Sheet
